USED 2015 BROTHER SPEEDIO R450X1
Overview
Description

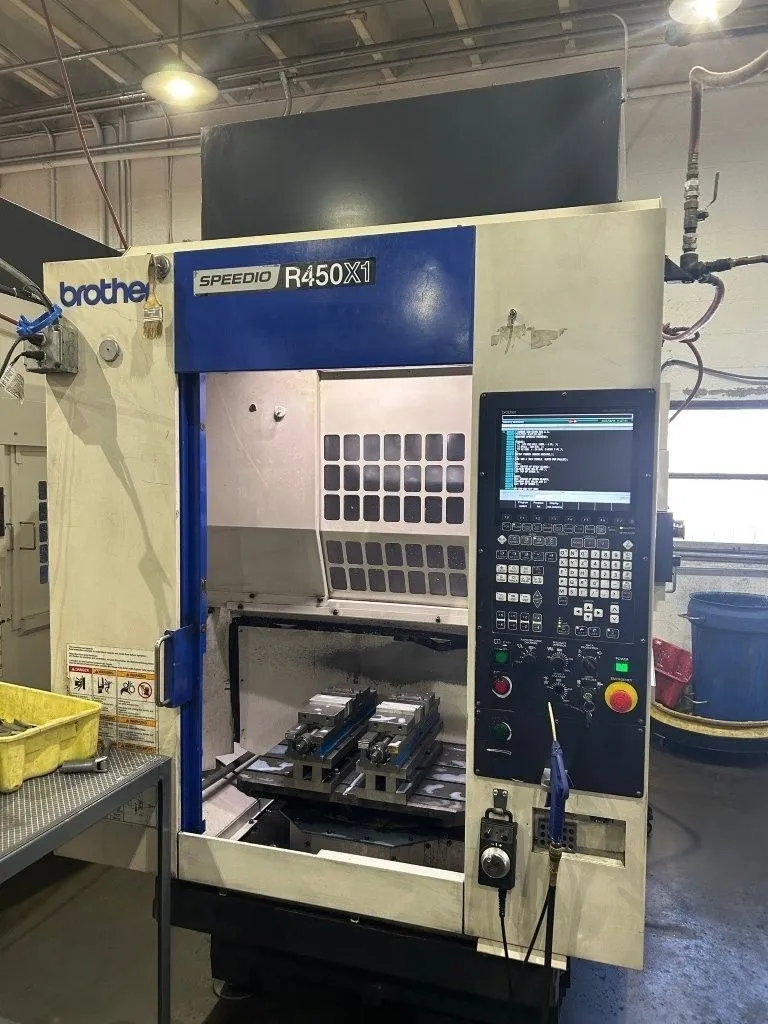

BROTHER SPEEDIO R450X1 CNC Machining Center 2015’ #7702
Specifications
| X axis | 17.7" | 449.58 mm |
|---|---|---|
| Y axis | 12.6" | 320.04 mm |
| Z axis | 12" | 304.8 mm |
| Power | 10.1 kW | 13.5 hp |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 22 | 22 |
| Taper | 7/24 #30 | 7/24 #30 |
| Table-W | 11.8" | 299.72 mm |
| Table-L | 23.6" | 599.44 mm |
| # Axis | 3 | 3 |
| Dimensions | 57 “ W x 108 L x 101” H | 57 “ W x 108 L x 101” H |
| Weight | 6,000 Lbs. | 6,000 Lbs. |
BROTHER SPEEDIO R450X1 CNC Machining Center 2015’ #7702
Reference # 7702
Model # R450X1
Serial #111606
Year of manufacture- 1/2015’
Working area size- 23.6” x 11.8”
Max loading capacity- 265 Lbs.
Spindle speed- 16,000 R.P.M.
Tapping R.P.M.- 6,000
Spindle taper- BT-30
Max tool length- 7.9”
Max tool diameter- 3.1”
Max tool weight- 6.6 Lbs.
Chip to Chip time- 1.5 seconds
Tool to tool time-.7 seconds
X axis travel- 17.7”
Y axis travel- 12.6”
Z axis travel- 12.0”
X,Y,Z Rapids- 1,969 I.P.M.
Cutting feeds- 0.04 – 1,181 I.P.M.
Tool Changer capacity- 22
Equipped With
Brother CNC Control
Machine hours- Operation time-5,690, Total operation time- 15,690, Power on time- 56,595
Coolant through spindle
Coolant tank & (2) Coolant Pumps
Machine is wired for 220 volt / 3 Phase / 60 H.Z.
Machine weight- 6,000 Lbs.
Machine dimensions- 57 “ W x 108 L x 101” H
Machine location- F.O.B. Sarasota, Florida
