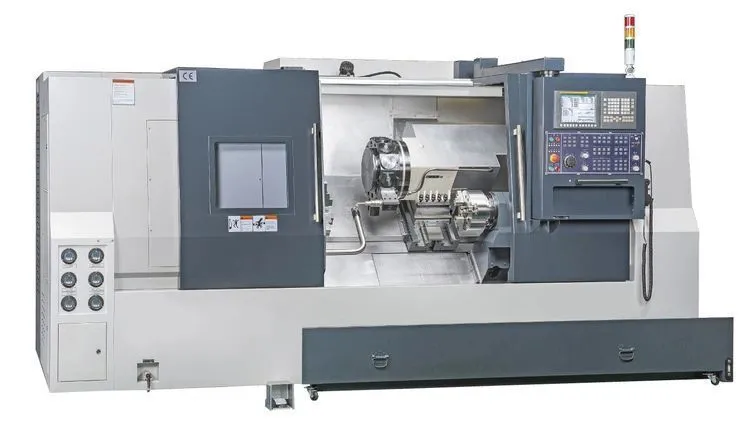

2025 MIGHTY VIPER CNC Turning Center Model VT-27GL
VT-27 has a 2-step gear spindle that provides powerful torque. Variable speed range of 1~600 / 600~3500 rpm. Spindle bar capacity is 3.03-inches. Dynamic turret with C-axis (option).
| Swing | 18.5" | 469.9 mm |
| Machining Length | 41.3" | 1,049 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.03" | 76.962 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turning Dia | 18.5" | 469.9 mm |
_• 0i-TD Fanuc
_• 12˝ Chuck
_• 18.5˝ x 41.3˝ DxL
_• 3500 RPM / 35 HP
_• 3″ Bar capacity
_• Static turret 12-tool
_• Chip conveyor link type
_• FOB Torrance, CA
Swing Over Z-Cover 26.8 (680)
Max. Turning Diameter 18.9 (480)
Max. Turning Length 21.7~80.7 (550~2050)
X-Travel 9.4 +1.18 (240+30)
Z-Travel 23.2 ~ 82.3 (590~2090)
Spindle Nose A2-8
Spindle Thru Hole 3.43 (87)
Bar Capacity 3.03 (77)
Spindle Motor** 35/50* hp
Spindle Speed Range 1~600 / 600~3500 rpm
