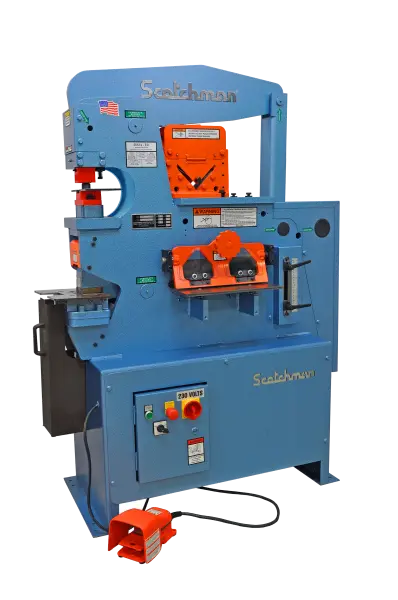

NEW SCOTCHMAN 50514-EC

Scotchman Component Tool Ironworkers are the most versatile and dependable punching, shearing, and notching ironworkers available today. Scotchman's unique component tool design will accept a large range of standard tools including press brakes, channel shears, rod shears, tube shears and pipe notchers. The tool table can also be used as a power source that will allow our customers to build their own tooling for all of their fabricating needs. Models available from 45 to 120 ton.

Punching Capacity

50 ton                    45 mt

1-1/4" in 1/2"            32 in 12 mm
13/16" in 3/4"            20 in 19 mm

Special Tooling

2-1/4" Max. Dia.          57 mm Max. Dia.

Throat Depth

6"                   152 mm

Flat Bar Shear

14" Length                356 mm

3/4" x 4"                 19 x 102 mm
1/2" x 8"                 12 x 203 mm
3/8" x 10"                10 x 254 mm
1/4" x 14"           6 x 356 mm

Saber Blade (optional)
1/2" x 10"                12 x 254 mm
3/8" x 12"           10 x 305 mm

Angle Shear
90 degree
4" x 4" x 3/8"            102  x 102 x 10 mm

Angle Shear
45 degree
2" x 2" x 1/4"            51 x 51 x 6 mm

Brake 8"
30 ton                   27 mt

Brake 12"
25 ton                   23 mt

Open End Brake
Max. 1/4" x 3"            6 x 76 mm
[Flat or Angle Iron]

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",1-1/2", 2"

Rectangle Notcher
2-1/2" x 3" x 5/16"       63 x 76 x 8 mm
2-1/2" x 2-3/4" x 3/8"   63 x 70 x 10 mm

90 degree V-Notcher
6" x 6" x 1/8"            152 x 152 x 3 mm
3" x 3" X 1/4"           76 x 76 x 6 mm
Unistrut Shear
Samples Required

Rod Shear
Round (max.)
Square (max.)
5 Cavity - 1/4" to 1"     6 to 25 mm
1 Cavity - 1/4" to 3/4"   6 to 19 mm

Square Tube Shear
1/2" to 1"                12 to 25 mm
12 gauge           0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"           12 , 19 , 25 mm
16 gauge           0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"           51 x 10 mm

Strokes Per Minute
in Light Material
34 spm
[Punch Station]            1/4" stroke

Strokes Per Minute
in Heavy Material
14 spm
[Punch Station]            3/4" stroke

Hydraulics
2,350 psi            162 bar
Motor Standard
3 hp                       2.24 kW
208/230/460,
380/575v; 3 ph

Motor Optional
5 hp
220v, 1 ph           3.73 kW

Dimensions
L: 48-1/4"                L: 122.5 cm
W: 23-1/2"                W: 60 cm
H: 63-3/4"           H: 161 cm
Shipping Weight (may vary)
1,580 lbs           717 kg
