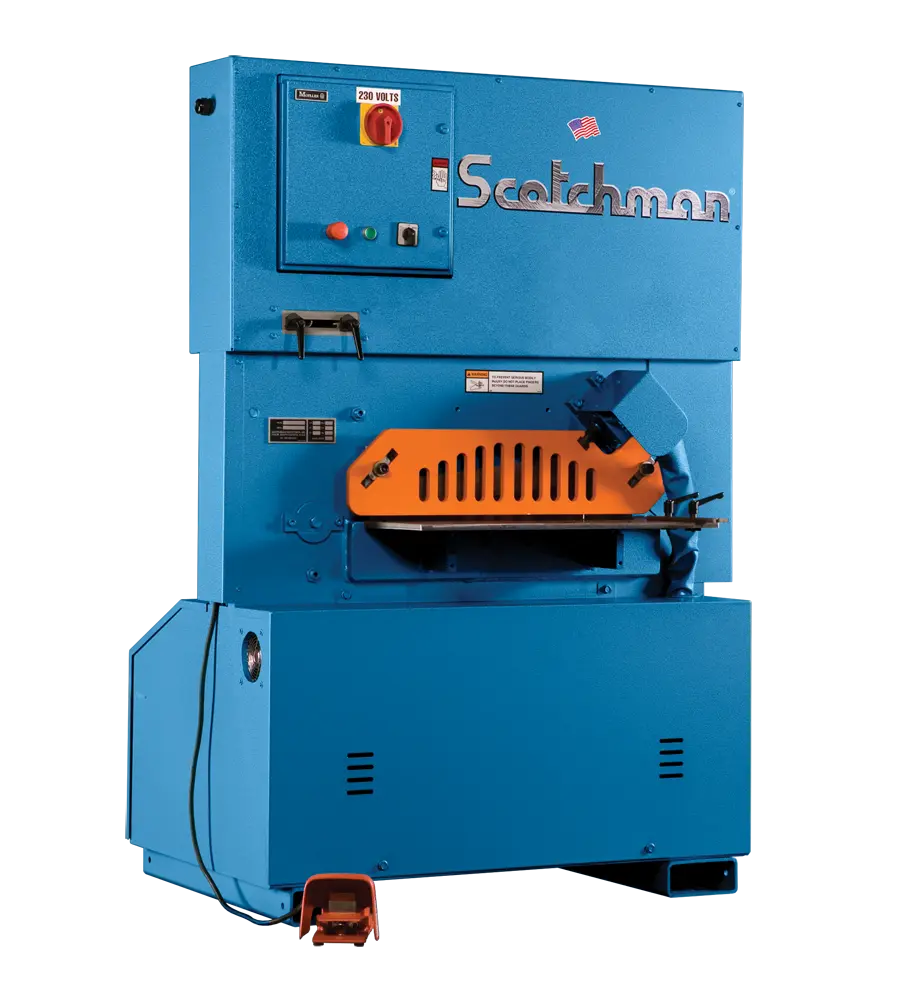

NEW SCOTCHMAN SHEARMASTER 610

The ShearMaster 610 is Scotchman's Production Flat Bar Shear. Designed with the high production end-user in mind, this machine combines large capacity with many standard features turning it into a high production shear. The ShearMaster 610 has a 10 horse power motor for fast cycle times and the capability of shearing 1" x 12" base plate and up to 1/2" x 24" flat stock. This shear is capable of 12 full strokes or 30 half strokes per minute.

Shearing Capacity
1" x 12"                        25 mm x 305 mm
3/4" x 16"                      19 mm x 406 mm
1/2" x 24"                 12 mm x 610 mm

Strokes Per Minute
Full Stroke - 10
Half Stroke - 17

Motor Standard
10 hp
230/460v, 3 ph                 7.46 kW

Motor Optional
10 hp
220v, 1 ph                 7.46 kW

Dimensions
L: 49"                          L: 124.5 cm
W: 37-3/4"                      W: 96 cm
H: 70"                          H: 178 cm
Shipping Weight
(may vary)
3,065 lbs                 1,390 kg
