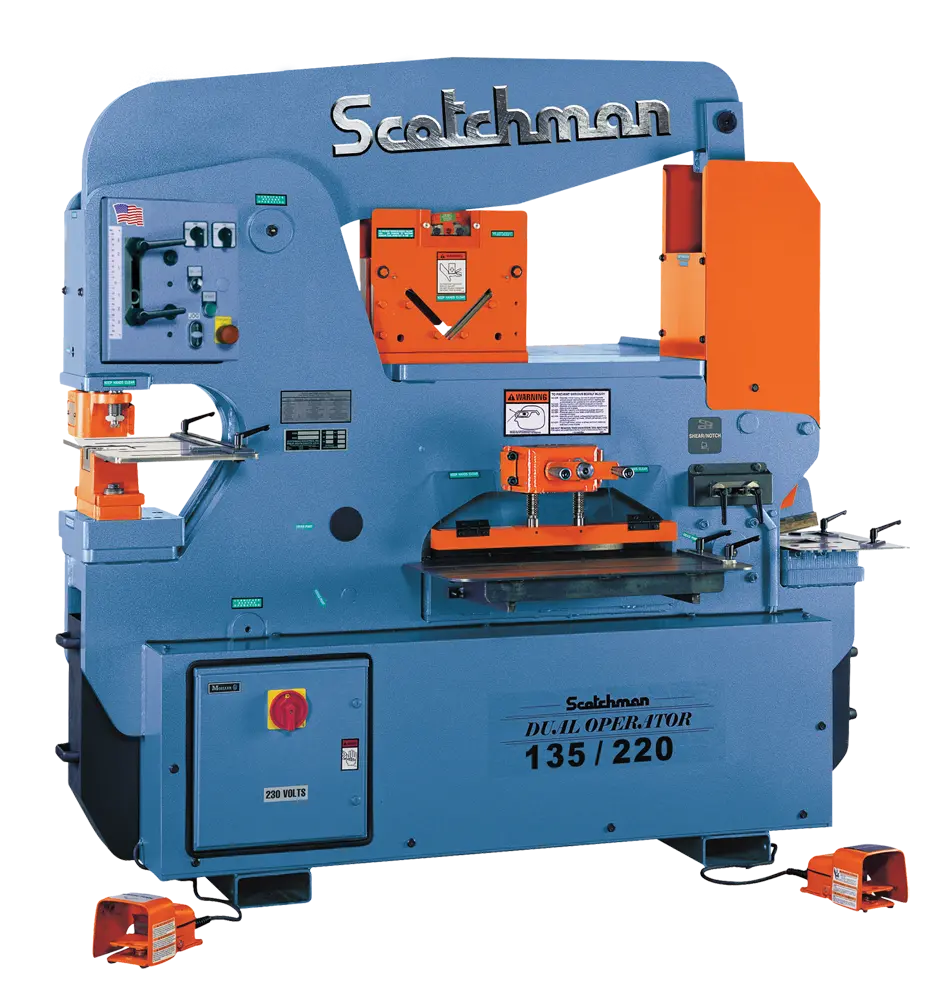

NEW SCOTCHMAN DO 135/220-24M

Scotchman Dual Operator Machines have a hydraulic system designed to assure full hydraulic pressure and speed to both operators. The DO 70, DO 95, DO 120, DO 135 and DO 150 Ironworkers feature our versatile tool table design, and come standard with a punch, angle shear, flat bar shear and notcher. Models available from 70 to 150 ton.

Punching Capacity
135 ton                           122 mt
1-11/16" in 1"                   42 mm in 25 mm

Special Tooling
4" Max. Dia.                   102 mm Max. Dia.

Throat Depth
12"                           305 mm

Flat Bar Shear
(Sabre Blade - Standard)
24" Length                        610 mm
1" x 12"                          25 mm x 305 mm
3/4" x 20"                        19 mm x 508 mm
1/2" x 24"                   12 mm x 610 mm

Angle Shear 90 degree
6" x 6" x 1/2"                   152 x 152 x 12 mm

Angle Shear 45 degree
w/Tool
3" x 3" x 3/8"                    76 mm x 76 mm x 10 mm
w/Bar Shear
4" x 4" x 1/2"                   102 mm x 102 mm x 12 mm

Brake 12"
90 ton                           81.6 mt
Brake 24"
70 ton                           63.5 mt

Open End Brake
Max. 1/4" x 5"
[Flat or Angle Iron]           6 mm x 127 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"

Rectangle Notcher
3" x 5-3/4" x 1/2"            76 mm x 146 mm x 12 mm

90 degree V-Notcher
6" x 6" x 5/16"                    152 mm x 152 mm x 8 mm
3" x 3" x 1/2"                    76 mm x 76 mm x 12 mm
Notching in Leg of Channel
6" to 10"                    152 mm to 254 mm

Channel Shear
2" to 6" adj.                    51 mm to 152 mm adj.
Unistrut Shear
Samples Required

Rod Shear
Round (max.)
9 Cavity - 1/4" to 1-1/4"          6 mm to 32 mm
Square (max.)
1 Cavity - 1/4" to 1"            6 mm to 25 mm

Square Tube Shear
1/2" to 2"                         12 mm to 51 mm
12 gauge                    0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"                    12 mm, 19 mm, 25 mm
16 gauge                    0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"                    51 mm x 10 mm

Offset Die Holder
Max. 40 ton                    Max. 36 mt

Strokes per minute
in light material
39 spm [Punch Station]            1/4" stroke

Strokes per minute
in heavy material
15 spm [Punch Station]            3/4" stroke

Hydraulics
3,500/3,500 psi                    241/241 bar

Motor Standard
10 hp
208/230/460,
380/575v; 3 ph                    7.46 kW

Motor Optional
10 hp
220v, 1 ph                    7.46 kW

Dimensions
L: 83"                             L: 211 cm
W: 38-1/2"                         W: 98 cm
H: 76-1/2"                    H: 194.5 cm

Shipping Weight
(may vary)
6,204 lbs.                    2,814 kg
