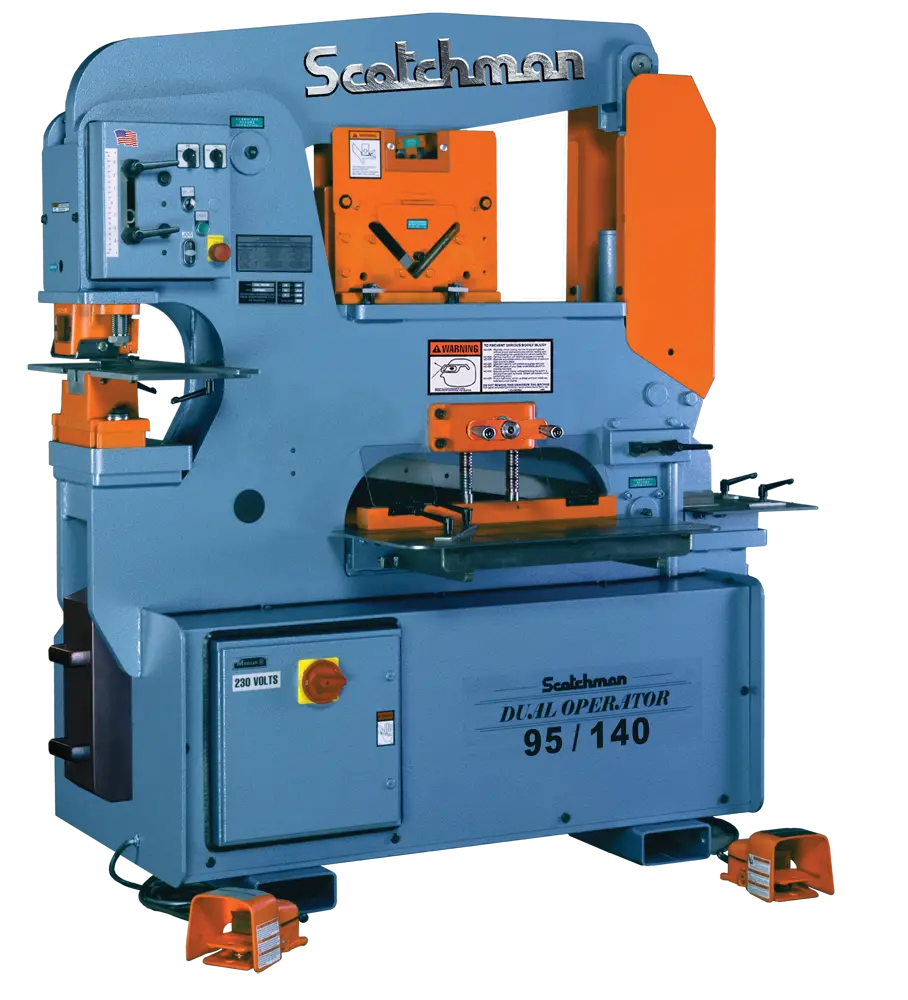

NEW SCOTCHMAN DO 95/140-24M

Scotchman Dual Operator Machines have a hydraulic system designed to assure full hydraulic pressure and speed to both operators. The DO 70, DO 95, DO 120, DO 135 and DO 150 Ironworkers feature our versatile tool table design, and come standard with a punch, angle shear, flat bar shear and notcher. Models available from 70 to 150 ton.

Punching Capacity
95 ton                          86 mt
1-3/16" in 1"                 30 mm in 25 mm

Special Tooling
4" Max. Dia.                 102 mm Max. Dia.

Throat Depth
9"                         229 mm

Flat Bar Shear
(Sabre Blade - Standard)
24" Length                      610 mm
1" x 8"                         25 mm x 203 mm
3/4" x 12"                      19 mm x 305 mm
1/2" x 16"                      12 mm x 406 mm
3/8" x 24"                 10 mm x 610 mm

Angle Shear 90 degree
6" x 6" x 1/2"                 152 mm x 152 mm x 12 mm

Angle Shear 45 degree
w/Tool
3" x 3" x 3/8"                  76 mm x 76 mm x 10 mm
w/Bar Shear
4" x 4" x 1/2"                 102 mm x 102 mm x 12 mm

Brake 12"
80 ton                         72.5 mt

Brake 24"
55 ton                         50 mt

Open End Brake
Max. 1/4" x 5"
[Flat or Angle Iron]         6 mm x 127 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"

Rectangle Notcher
3" x 5" x 3/8"                  76 mm x 127 mm x 10 mm
3" x 4" x 1/2"                 76 mm x 101 mm x 12 mm

90 degree V-Notcher
6" x 6" x 5/16"                 152 mm x 152 mm x 8 mm
3" x 3" x 3/8"                 76 mm x 76 mm x 10 mm

Notching in
Leg of Channel
6" to 10"                 152 mm to 254 mm

Channel Shear
2" to 6" adj.                 51 mm to 152 mm adj.

Unistrut Shear
Samples Required

Rod Shear
Round (max.)
9 Cavity - 1/4" to 1-1/4"       6 mm to 32 mm
Square (max.)
1 Cavity - 1/4" to 1"         6 mm to 25 mm

Square Tube Shear
1/2" to 2"                      12 mm to 51 mm
12 gauge                 0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"                 12 mm, 19 mm, 25 mm
16 gauge                 0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"                 51 mm x 10 mm

Offset Die Holder
Max. 40 ton                 Max. 36 mt

Strokes per minute
in light material
38 spm [Punch Station]         1/4" stroke

Strokes per minute
in heavy material
15 spm [Punch Station]         3/4" stroke

Hydraulics
3,500/3,500 psi                 241/241 bar

Motor Standard
10 hp
208/230/460,
380/575v; 3 ph                 7.46 kW

Motor Optional
10 hp
220v, 1 ph                 7.46 kW

Dimensions
L: 69"                          L: 175 cm
W: 37-1/2"                      W: 95 cm
H: 71"                         H: 180 cm

Shipping Weight
(may vary)
3,800 lbs.                 1,724 kg
