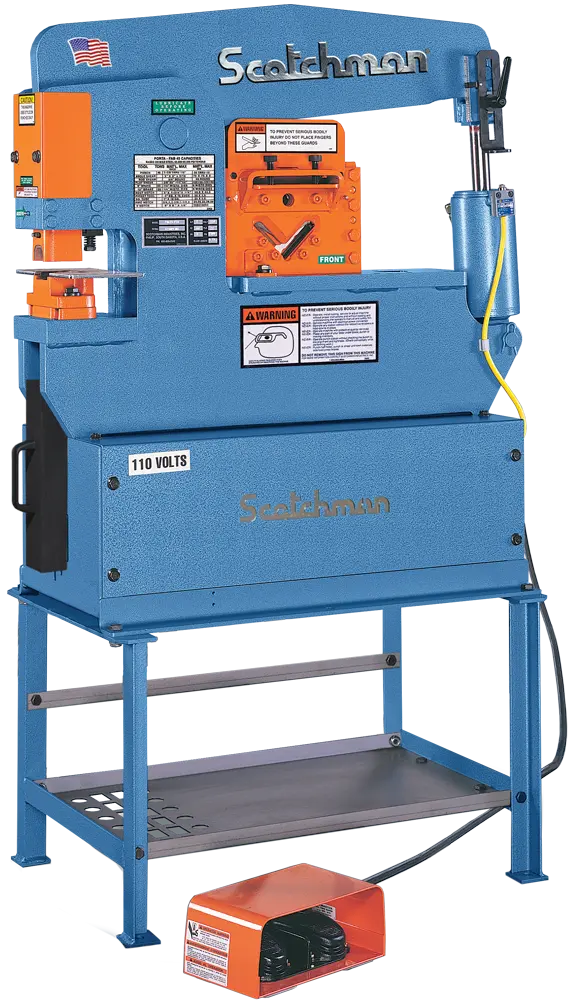

NEW SCOTCHMAN PORTA FAB 45

The Scotchman Porta Fab 45 hydraulic ironworker is the perfect choice for the small fabricator! This portable ironworker is designed for in-plant or on-the-job operation and uses 110-volt power for added convenience. Featuring a 45-ton punching capacity, the Porta-Fab 45 can punch 1-1/8″ through 1/2″ material and comes standard with a 3-in-1 combination tool consisting of a 3/8″ x 6″ flat bar shear, 3/4″ rod shear, and a 3″ x 3″ x 5/16″ angle shear. The Porta Fab 45 hydraulic ironworker also accepts many other optional Scotchman tooling components including press brakes, pipe notchers, rectangular notchers, and picket tool attachments. The American-made Porta Fab 45 utilizes a hydraulic system with electric valve and remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty.

Punching Capacity
45 Ton                       (41 mt)
1-1/8" in 1/2"               (28 mm in 12 mm)

Special Tooling
2-1/4" Max. Dia.              57 mm Max. Dia.

Throat Depth
4-1/4"                        108 mm

Flat Bar Shear
6" Length                     152 mm
1/2" x 4"                     12 mm x 102 mm
3/8" x 6"                     10 mm x 152 mm

Angle Shear 90 degree
3" x 3" x 5/16"               76 mm x 76 mm x 8 mm

Angle Shear 45 degree
2" x 2" x 1/4"                51 mm x 51 mm x 6 mm

Round Rod Shear
3/4"                          19 mm

Brake 8"
25 Ton                        23 mt

Brake 12"
20 Ton                        18 mt

Open End Brake
Max. 1/4" x 3"
[Flat or Angle Iron]          6 mm x 76 mm

Pipe Notcher Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"

Rectangle Notcher
2" x 1-3/4" x 1/4"            51 mm x 44 mm x 6 mm

90 degree V-Notcher
6" x 6" x 1/8"                152 mm x 152 mm x 3 mm

Rod Shear
Round (max.)
5 Cavity - 1/4" to 1"         6 mm to 25 mm
Square (max.)
1 Cavity - 1/4" to 3/4"       6 mm to 19 mm

Unistrut Shear
Samples Required

Square Tube Shear
1/2" to 1"                    12 gauge
12 to 25 mm                   0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"               12 mm, 19 mm, 25 mm
16 gauge                      0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"                51 mm x 10 mm

Strokes per minute
in light material
10 spm
[Punch Station]               1/4" Stroke

Strokes per minute
in heavy material
4 spm
[Punch Station]               3/4" Stroke

Hydraulics
2,500 psi                     172 bar

Motor Standard
2 hp                          110v

Motor Optional
2 hp 220v,
1 ph                          1.49kW

Dimensions
L: 38-1/4"                    L: 97 cm
W: 20"                        W: 51 cm
H: 39-1/4"                    H: 100 cm

Shipping Weight (may vary)
710 lbs.                      322 kg
