NEW SCOTCHMAN FI 8510-20M

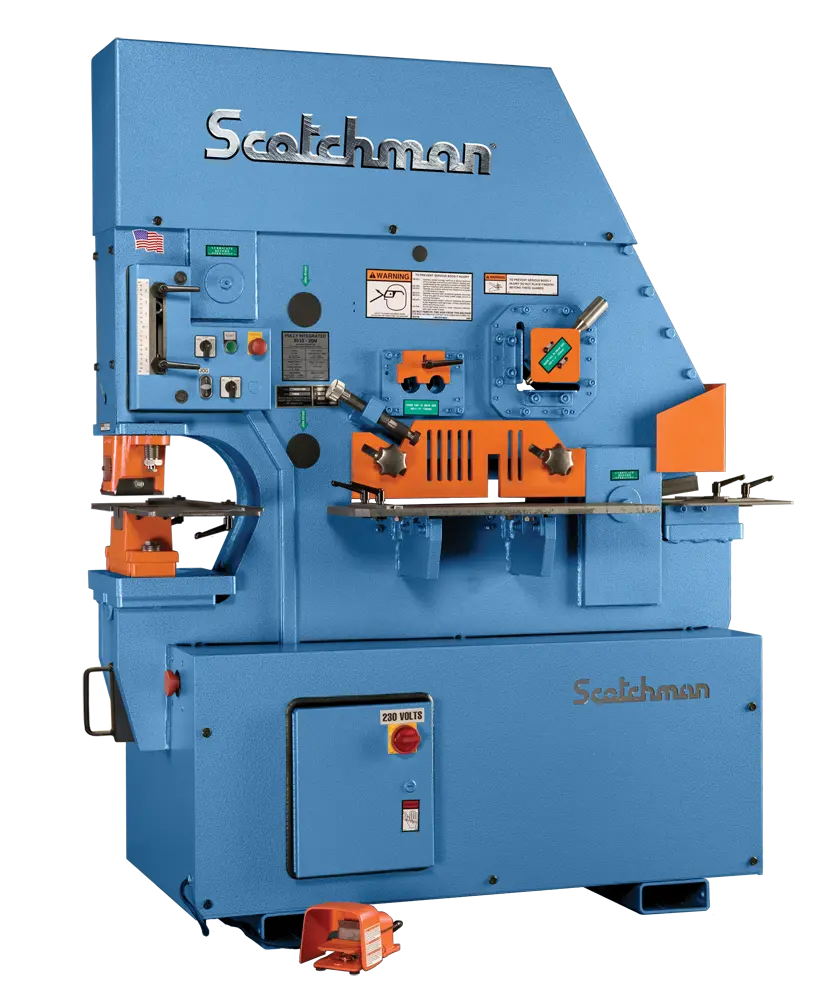

Have you ever heard the phrase “Sleeping Giant”? Scotchman Industries’ “Sleeping Giant” is our fully-integrated, FI 8510-20M hydraulic ironworker. Pound for pound, ton for ton, and dollar for dollar, there is nothing on the market that compares to this ironwroker machine.

This machine has five built-in work stations that include: 85 tons of punching capacity (1-1/16” in 1” 65,000 tensile mild steel), 20” wide flat bar shear (capable of shearing 1” x 12” and 1/2” x 20”), 6” x 6” x 1/2” crop off angle shear, round and square, solid rod shear and a 3” x 5” x 1/2” rectangle notcher.

Punching Capacity
85 ton                       77 mt
1-1/16" in 1"              27 mm in 25 mm

Special Tooling
4" Max. Dia.              102 mm Max. Dia.

Throat Depth
10"                      254 mm

Flat Bar Shear
20" Length                   508 mm
1" x 12"                     25 mm x 305 mm
3/4" x 20"              19 mm x 508 mm

Angle Shear 90 degree
6" x 6" x 1/2"              152 mm x 152 mm x 12 mm

Angle Shear 45 degree
(w/Bar Shear)
4" x 4" x 1/2"              102 mm x 102 mm x 12 mm
Brake 12"
85 ton                      77 mt

Brake 24"
85 ton                      77 mt

Open End Brake Max.
1/4" x 5"
[Flat or Angle Iron]      6 mm x 127 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"

Rectangle Notcher
3" x 5" x 1/2"              76 mm x 127 mm x 12 mm

90 degree V-Notcher
(Punch Station)
6" x 6" x 5/16"              152 mm x 152 mm x 8 mm

Channel Shear
2" to 6" adj.              51 mm to 152 mm adj.
Unistrut Shear
Samples Required

Rod Shear
Round (max.)
1 Cavity - 1-1/2"            38 mm
Square (max.)
1 Cavity - 1-1/4"      32 mm

Square Tube Shear
1/2" to 2"                   12 mm to 51 mm
12 gauge              0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"              12 mm, 19 mm, 25 mm
16 gauge              0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"              51 mm x 10 mm

Offset Die Holder
Max. 40 ton              Max. 36 mt

Strokes per Minute
in Light Material
51 spm [Punch Station]      1/4" Stroke

Strokes per Minute
in Heavy Material
24 spm [Punch Station]      3/4" Stroke

Hydraulics
2,600 psi              179 bar

Motor Standard
5 hp
208/230/460,
380/575v; 3 ph              3.76 kW
Motor Optional
5 hp
220v, 1 ph              3.76 kW

Dimensions
L: 67-3/4"                   L: 172 cm
W: 32"                       W: 81.5 cm
H: 78"                      H: 198 cm

Shipping Weight
(may vary)
4,554 lbs.              2,066 kg
