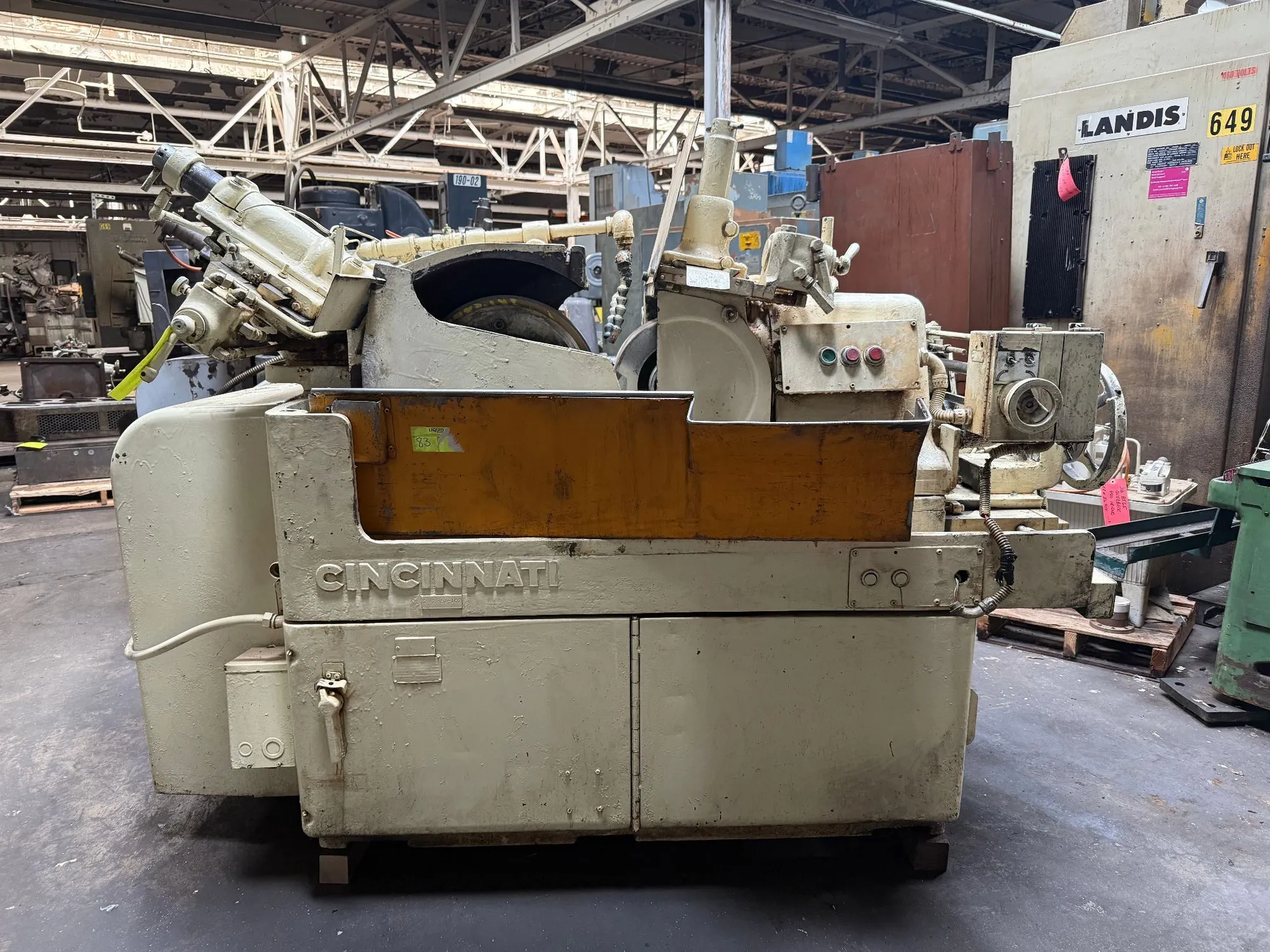

USED 1953 CINCINNATI #2 OM

#2 "OM" CINCINNATI CENTERLESS GRINDER

S/N 2M2H5A-102 Year: 1953

STANDARD CATALOG SPECIFICATIONS

CAPACITY (Depending on which work rest is ordered,
not included in price)
Standard work rest...................... 1/16" to 3 1/2" dia.
Low thru feed work rest................. 2" to 4 3/4" dia.
Bar work................................ 1/8" to 2" dia. 18" long

GRINDING WHEEL (Not supplied)
Width.............. 4, 6, or 8" Hole............ 12"
Maximum diameter................................... 24"
Minimum diameter................................... 14"

REGULATING WHEEL (Not supplied)
Width.............. 4, 6, or 8" Hole............ 5"
Maximum diameter................................... 12"
Minimum diameter................................... 9"

MOTOR DRIVES
Grinding wheel..................................... 15 HP
Regulating wheel................................... 1 1/2 HP
Hydraulic pump..................................... 1 1/2 HP
Cutting fluid...................................... 1/4 HP

OVERALL DIMENSIONS
Floor space: ...................................... 53" x 86"
Weight............................................. 7,000 lbs.

EQUIPMENT & FEATURES
Filmatic bearings.
Hydraulic contour truing on grinding wheel.
Hydraulic straight on regulating wheel.
Grinding wheel mount for straight side wheel.
Regulating wheel mount for straight side wheel.
Cincinnati lube system.

Specifications are deemed accurate, however, subject to verification or prior sale.
