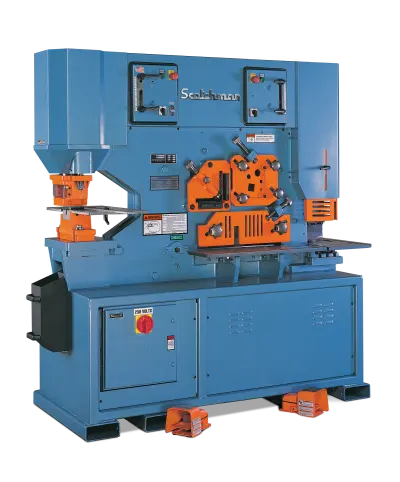

NEW SCOTCHMAN DO 8514-20M

If you are looking for a Fully-Integrated/Dual Operator ironworker that has more versatility than any other machine on the market, look no more!

The Scotchman DO8514-20M hydraulic ironworker is a fully-integrated ironworker machine with five built-in functions: 85-ton punch (1-1/16” in 1”), 6” x 6” x 1/2” crop off angle shear, round and square solid rod shear, 20” flat bar shear (that will shear a whopping 1” x 16” and 3/4” x 20”), plus a rectangle notcher.

Punching Capacity
85 ton                       77 mt
1-1/16" in 1"              27 mm in 25 mm

Special Tooling
4" Max. Dia.              102 mm Max. Dia.

Throat Depth
14"                      355 mm

Flat Bar Shear
20" Length                   508 mm
1" x 14"                     25 mm x 355 mm
3/4" x 20"              19 mm x 508 mm

Angle Shear 90 degree
6" x 6" x 1/2"              152 mm x 152 mm x 12 mm

Angle Shear 45 degree
(w/Bar Shear)
4" x 4" x 1/2"              102 mm x 102 mm x 12 mm

Brake 12"
85 ton                      77 mt

Brake 24"
85 ton                      77 mt
Open End Brake
(Notcher Station)
Max. 1/2" x 6"
[Flat or Angle Iron]      12 mm x 152 mm

Open End Brake
(Punch Station)
Max. 1/4" x 5"
[Flat or Angle Iron]      6 mm x 127 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"

Rectangle Notcher
2" x 4" x 1/2"              51 mm x 101 mm x 12 mm

90 degree V-Notcher
(Punch Station)
6" x 6" x 5/16"              152 mm x 152 mm x 8 mm

90 degree V-Notcher
(Notcher Station)
3" x 3" x 1/2"              76 mm x 76 mm x 12 mm
Punch Attachment
(Notcher Station)
50 ton
1-1/4" in 1/2"              32 mm in 12 mm

Throat Depth
w/Punch Attachment
(Notcher Station)
4-7/16"                      113 mm

Channel Shear
2" to 6"              51 mm to 152 mm
Unistrut Shear
Samples Required

Rod Shear
Round (max.)
4 Cavity - 1/2", 3/4"        12 mm, 19 mm
1", 1-1/2"                   25 mm, 38 mm
Square (max.)
1 Cavity - 1-1/2"      38 mm

Square Tube Shear
1/2" to 2"                   12 mm to 51 mm
12 gauge              0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"              12 mm, 19 mm, 25 mm
16 gauge              0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"              51 mm x 10 mm

Offset Die Holder
Max. 40 ton              Max. 36 mt

Strokes per Minute
in Light Material
45 spm [Punch Station]      1/4" Stroke

Strokes per Minute
in Heavy Material
18 spm [Punch Station]      3/4" Stroke

Hydraulics
3,350/3,800 psi              231/262 bar

Motor Standard
10 hp
208/230/460,
380/575v; 3 ph              7.46 kW

Motor Optional
10 hp
220v, 1 ph              7.46 kW

Dimensions
L: 77-1/2"                   L: 197 cm
W: 32-1/4"                   W: 82 cm
H: 74"                      H: 188 cm

Shipping Weight
(may vary)
5,504 lbs              2,497 kg
