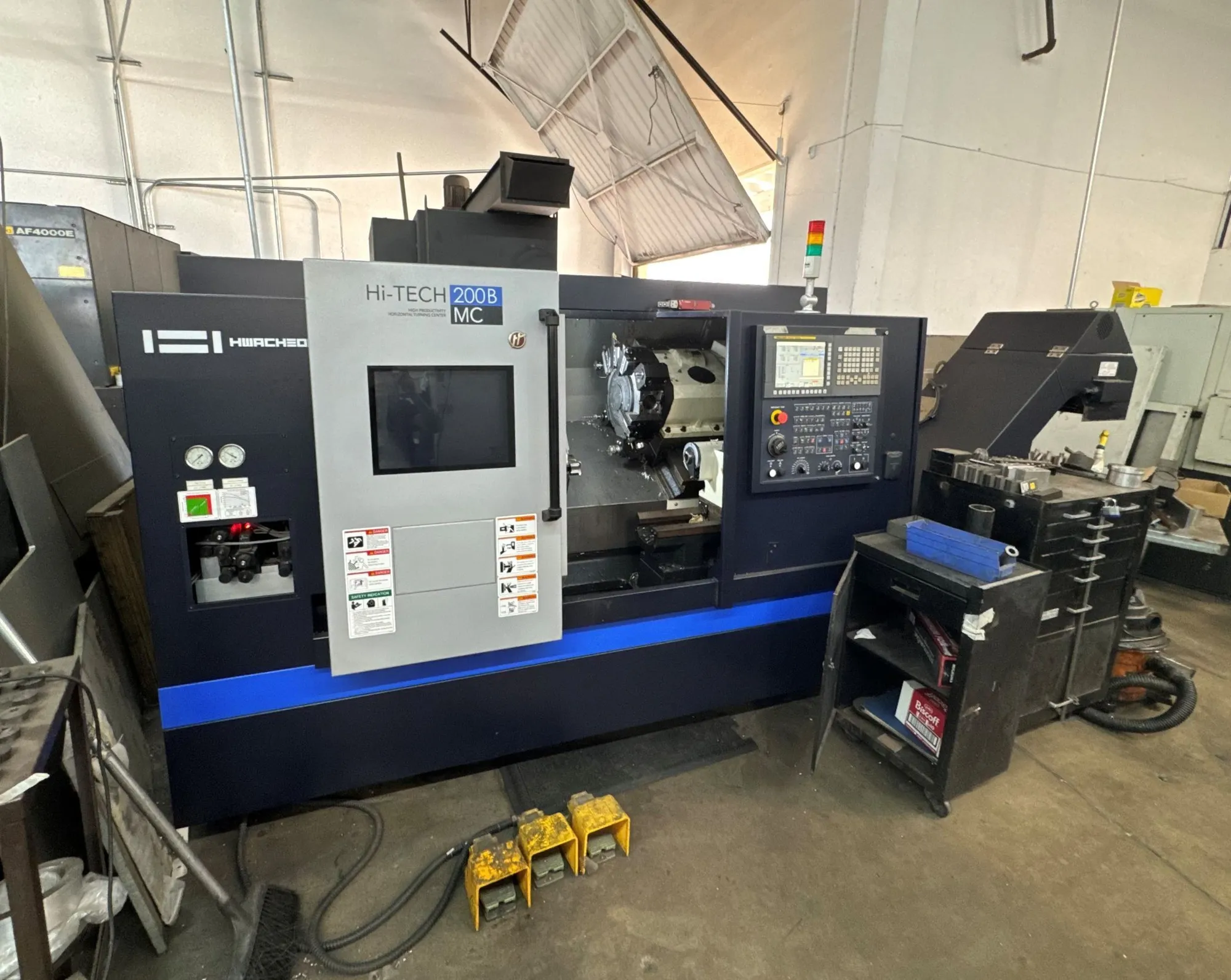

USED 2019 HWACHEON HI-TECH 200B/MC
Overview
Specifications
| Swing | 19.69" | 500.13 mm |
|---|---|---|
| Machining Length | 11.89" | 302.01 mm |
| Max. Turning Diameter | 13.78" | 350.01 mm |
| X-Axis | 7.68" | 195.07 mm |
| Z-Axis | 16.93" | 430.02 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2.52" | 64.008 mm |
| Spindle Bore | 2.95 in | |
| Spindle Nose | A2-6 | A2-6 |
| Power | 20.1 hp | 15 kW |
| Max RPM | 3,500 RPM | 3,500 RPM |
| Turret Stations | 12 | 12 |
Equipped With
Fanuc 0i-TF CNC Control
Milling
Chip Conveyor
