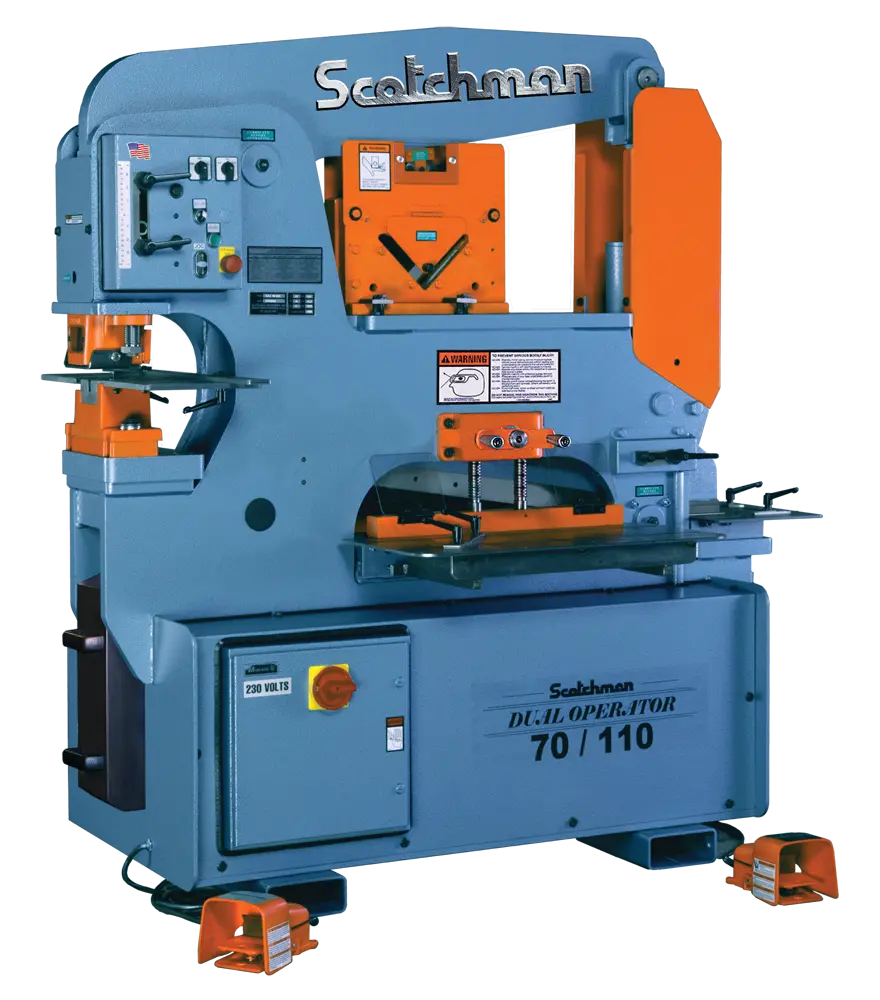

NEW SCOTCHMAN DO 70/110-24M

Scotchman offers several American-made, Dual Operator Ironworker Models from 70 to 150 tons of punching power. The definition of a Dual Operator Ironworker is that it allows two operators to perform two different fabricating functions simultaneously. The Tool Table Design and the wide variety of optional tools available give the Scotchman Dual Operator Machines more versatility and flexibility than any other ironworker machine on the market.

Punching Capacity
70 ton                       63 mt
1-1/8" in 3/4"              29 mm in 19 mm

Special Tooling
4" Max. Dia.              102 mm Max. Dia.

Throat Depth
9"                      229 mm

Flat Bar Shear
(Sabre Blade - Standard)
24" Length                   610 mm
1" x 6"                      25 mm x 152 mm
3/4" x 10"                   19 mm x 254 mm
1/2" x 14"                   12 mm x 356 mm
3/8" x 24"                   10 mm x 610 mm

Angle Shear 90 degree
6" x 6" x 1/2"               152 mm x 152 mm x 12 mm
Angle Shear 45 degree
w/Tool
3" x 3" x 3/8"               76 mm x 76 mm x 10 mm
w/Bar Shear
4" x 4" x 1/2"               102 mm x 102 mm x 12 mm

Brake 12"
65 ton                       59 mt

Brake 24"
45 ton                       40 mt

Open End Brake Max.
1/4" x 5"
[Flat or Angle Iron]         6 mm x 127 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4", 1-1/2", 2"

Rectangle Notcher
3" x 5" x 3/8"               76 mm x 127 mm x 10 mm
3" x 4" x 1/2"               76 mm x 101 mm x 12 mm

90 degree V-Notcher
6" x 6" x 5/16"              152 mm x 152 mm x 8 mm
3" x 3" x 3/8"               76 mm x 76 mm x 10 mm

Notching in Leg of Channel
6" to 10"                    152 mm to 254 mm

Channel Shear
2" to 6" adj.                51 mm to 152 mm adj.

Unistrut Shear
Samples Required

Rod Shear
Round (max.)
9 Cavity - 1/4" to 1-1/4"    6 mm to 32 mm
Square (max.)
1 Cavity - 1/4" to 1"        6 mm to 25 mm

Square Tube Shear
1/2" to 2"                   12 mm to 51 mm
12 gauge                     0.105" / 2.7 mm

Picket Tool
1/2", 3/4"& 1"               12 mm, 19 mm, 25 mm
16 gauge                     0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"               51 mm x 10 mm

Offset Die Holder
Max. 40 ton                  Max. 36 mt

Strokes per Minute
in Light Material
38 spm [Punch Station]       1/4" Stroke

Strokes per Minute
in Heavy Material
15 spm [Punch Station]       3/4" Stroke

Hydraulics
3,000/3,000 psi              207/207 bar

Motor Standard
10 hp
208/230/460,
380/575v; 3 ph               7.46 kW
Motor Optional
10 hp
220v, 1 ph                   7.46 kW
Dimensions
L: 69"                       L: 175 cm
W: 37-1/2"                   W: 95 cm
H: 71"                       H: 180 cm
Shipping Weight
(may vary)
3,800 lbs.                   1,724 kg
