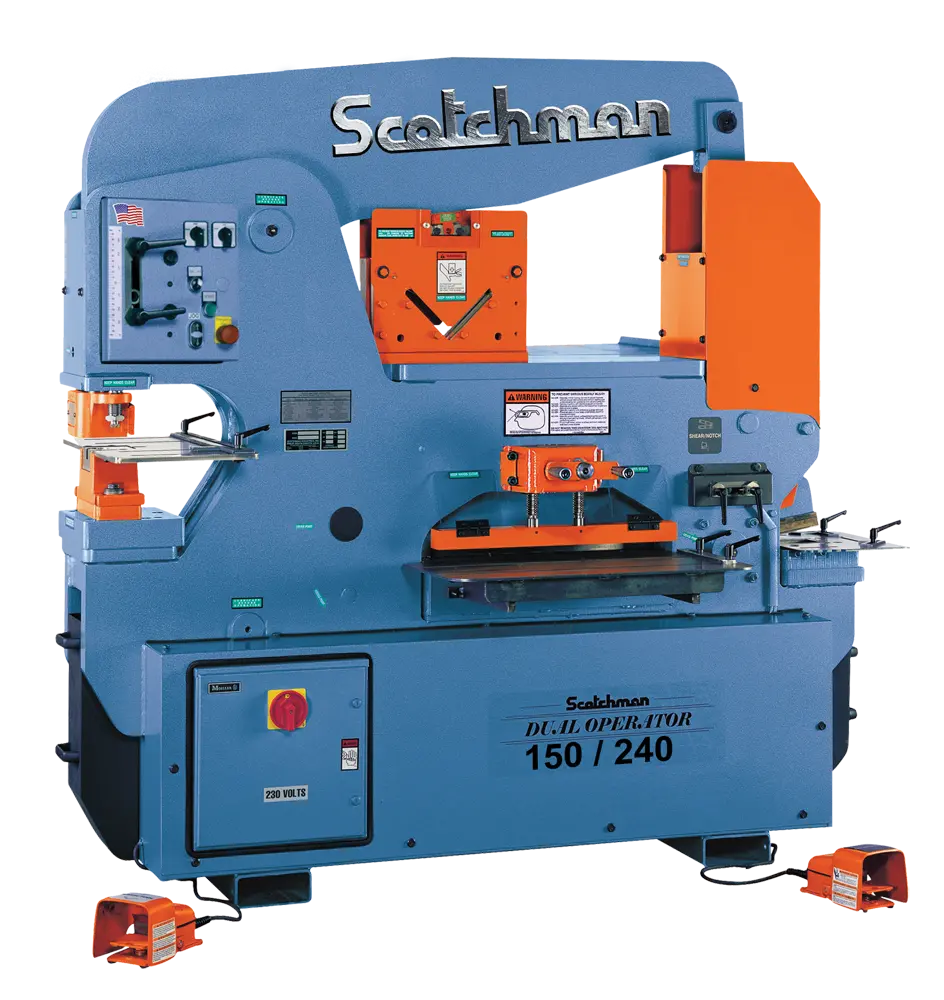

NEW SCOTCHMAN DO 150/240-24M

Punching Capacity
150 ton                             136 mt
1-7/8" in 1"                        47 in 25 mm
2-1/2" in 3/4"                     64 in 19 mm

Special Tooling
4" Max. Dia.                     102 mm Max. Dia.

Throat Depth
12"                             305 mm

Flat Bar Shear
(Sabre Blade - Standard)
24" Length                          610 mm
1" x 14"                            25 mm x 356 mm
3/4" x 24"                     19 mm x 610 mm

Angle Shear 90 degree
6" x 6" x 1/2"                     152 mm x 152 mm x 12 mm

Angle Shear 45 degree
w/Tool
3" x 3" x 3/8"                      76 mm x 76 mm x 10 mm
w/Bar Shear
4" x 4" x 1/2"                     102 mm x 102 mm x 12 mm

Brake 12"
90 ton                             81.6 mt

Brake 24"
70 ton                             63.5 mt

Open End Brake
Max. 1/4" x 5"
[Flat or Angle Iron]             6 mm x 127 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"

Rectangle Notcher
3" x 5-3/4" x 1/2"             76 mm x 146 mm x 12 mm

90 degree V-Notcher
6" x 6" x 5/16"                     152 mm x 152 mm x 8 mm
3" x 3" x 1/2"                     76 mm x 76 mm x 12 mm

Notching in Leg of Channel
6" to 10"                     152 mm to 254 mm
Channel Shear
2" to 6" adj.                     51 mm to 152 mm adj.

Unistrut Shear
Samples Required

Rod Shear
Round (max.)
9 Cavity - 1/4" to 1-1/4"           6 mm to 32 mm
Square (max.)
1 Cavity - 1/4" to 1"             6 mm to 25 mm

Square Tube Shear
1/2" to 2"                          12 to 51 mm
12 gauge                     0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"                     12 mm, 19 mm, 25 mm
16 gauge                     0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"                     51 mm x 10 mm

Offset Die Holder
Max. 40 ton                     Max. 36 mt

Strokes per Minute
in Light Material
44 spm [Punch Station]             1/4" Stroke
Strokes per Minute
in Heavy Material
17 spm [Punch Station]             3/4" Stroke
Hydraulics
3,500/3,500 psi                     241/241 bar

Motor Standard
10 hp
208/230/460,
380/575v; 3ph                     7.46 kW

Motor Optional
10 hp
220v, 1 ph                     7.46 kW

Dimensions
L: 83"                              L: 211 cm
W: 38-1/2"                          W: 98 cm
H: 77-1/4"                     H: 196.5 cm

Shipping Weight
(may vary)
6,404 lbs                     2,905 kg
