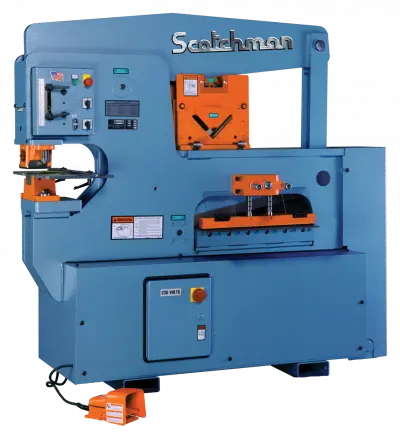

NEW SCOTCHMAN 9012-24M

If you are in the medium to large metal fabrication business, the Scotchman 9012-24M hydraulic ironworker will give you the greatest amount of versatility and flexibility on the market today. The Scotchman 9012-24M has a 90-ton Punch Station capable of punching a 1-1/16” hole in 1” thick, 65,000 tensile mild steel. The Flat Bar Shear is 24” wide and is supplied with bar shear blades that can be rotated four times for maximum blade life. The Angle Shear capacity on this machine is 6” x 6” x 1/2”; and like all Scotchman angles shears, it is designed to give a distortion free cut. The 9012-24M hydraulic ironworker has the same large tool table design as the 6509-24M, allowing quick and easy change of optional tooling. Like all Scotchman ironworkers, the 9012-24M is backed by our best-in-the business 3-year warranty!

Punching Capacity
90 ton                        80 mt
1-1/8" in 1"               29 mm in 25 mm

Special Tooling
4" Max. Dia.               102 mm Max. Dia.

Throat Depth
12"                       305 mm

Flat Bar Shear
24" Length                    610 mm
1" x 8"                       25 mm x 203 mm
3/4" x 12"                    19 mm x 305 mm
1/2" x 16"                    12 mm x 406 mm
1/4" x 24"               6 mm x 610 mm

Saber Blade
(optional)
1/2" x 22"                    12 mm x 559 mm
3/8" x 24"               10 mm x 610 mm

Angle Shear 90 degree
6" x 6" x 1/2"               152 mm x 152 mm x 12 mm

Angle Shear 45 degree
w/Tool
3" x 3" x 3/8"                76 mm x 76 mm x 10 mm
w/Bar Shear
4" x 4" x 1/2"               102 mm x 102 mm x 12 mm

Brake 12"
50 ton                       45 mt

Brake 24"
40 ton                       36 mt

Open End Brake
Max. 1/4" x 5"
[Flat or Angle Iron]       6 mm x 127 mm

Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"

Rectangle Notcher
2" x 2-1/2" x 3/8"       51 mm x 63 mm x 10 mm

90 degree V-Notcher
6" x 6" x 5/16"               152 mm x 152 mm x 8 mm

Channel Shear
2" to 6" adj.               51 mm to 152 mm adj.

Unistrut Shear
Samples Required

Rod Shear
Round (max.)
9 Cavity - 1/4" to 1-1/4"     6 mm to 32 mm
Square (max.)
1 Cavity - 1/4" to 1"       6 mm to 25 mm
Square Tube Shear
1/2" to 2"                    12 mm to 51 mm
12 gauge               0.105" / 2.7 mm

Picket Tool
1/2", 3/4" & 1"               12 mm, 19 mm, 25 mm
16 gauge               0.06" / 1.5 mm

Weld Coupon Bender (max.)
2" wide x 3/8"               51 mm x 10 mm

Offset Die Holder
Max. 40 ton               Max. 36 mt

Strokes per Minute
in Light Material
45 spm
[Punch Station]               1/4" Stroke

Strokes per Minute
in Heavy Material
24 spm
[Punch Station]               3/4" Stroke

Hydraulics
2,600 psi               179 bar
Motor Standard
5 hp
208/230/460,
380/575v; 3 ph               3.73 kW

Motor Optional
5 hp
220v, 1ph               3.73 kW

Dimensions
L: 76-3/4"                    L: 195 cm
W: 31"                        W: 79 cm
H: 71-1/2"               H: 181.5 cm

Shipping Weight
(may vary)
4,204 lbs.               1,907 kg
