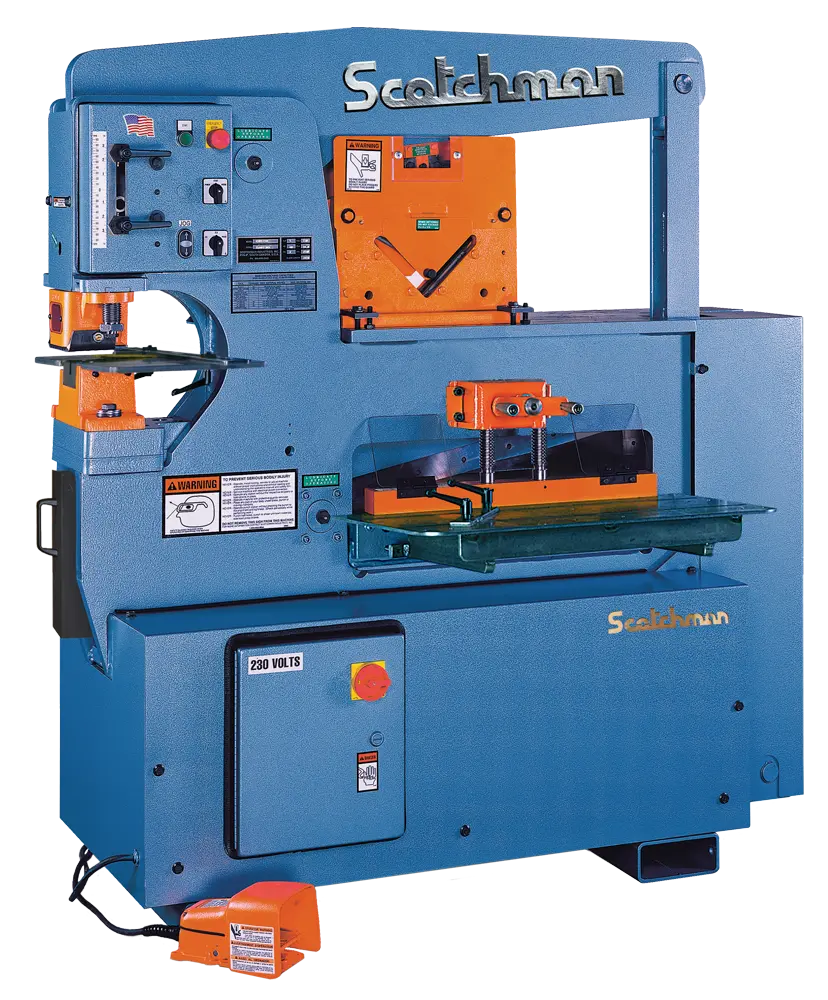

NEW SCOTCHMAN 6509-24M
Overview
If you are in the metal working or custom fabrication industry, the Scotchman 6509-24M is a must have for your shop. This 65-ton hydraulic ironworker can punch 1-1/16” in 3/4” thick, 65,000 tensile plate. It has the largest flat bar shear capacity (1″ x 6″, 1/2" x 12″ and 1/4″ x 24″) and the largest angle shear capacity (6” x 6” x 3/8” and 5″ x 5″ x 1/2″) of any machine in its class. Combining this machine's large capacity with its large open tool table (which accepts up to a 24” press brake and up to a 5” channel shear) makes this machine the most versatile and flexible machine on the market. Like all of Scotchman Industries ironworkers, the 6509-24M is proudly made in the USA and is backed by Scotchman’s Best in the Business 3-year warranty.
Specs
Punching Capacity
65 ton 58 mt
1-1/16" in 3/4" 27 mm in 19 mm
Special Tooling
4" Max. Dia. 102 mm Max. Dia.
Throat Depth
9" 229 mm
Flat Bar Shear
24" Length 610 mm
1" x 6" 25 mm x 152 mm
3/4" x 10" 19 mm x 254 mm
1/2" x 12" 12 mm x 305 mm
3/8" x 16" 10 mm x 406 mm
1/4" x 24" 6 mm x 610 mm
Saber Blade (optional)
1" x 6" 25 mm x 152 mm
1/2" x 16" 12 mm x 406 mm
Angle Shear 90 degree
6" x 6" x 3/8" 152 mm x 152 mm x 10 mm
5" x 5" x 1/2" 127 mm x 127 mm x 12 mm
Angle Shear 45 degree
w/Tool
3" x 3" x 3/8" 76 mm x 76 mm x 10 mm
w/Bar Shear
4" x 4" x 1/2" 102 mm x 102 mm x 12 mm
Brake 12"
40 ton 36 mt
Brake 24"
30 ton 27 mt
Open End Brake Max.
1/4" x 5"
[Flat or Angle Iron] 6 mm x 127 mm
Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"
Rectangle Notcher
2" x 2-1/2" x 3/8" 51 mm x 63 mm x 10 mm
90 degree V-Notcher
6" x 6" x 5/16" 152 mm x 152 mm x 8 mm
Channel Shear
2" to 5" adj. 51 mm to 127 mm adj.
Unistrut Shear
Samples Required
Rod Shear
Round (max.)
9 Cavity - 1/4" to 1-1/4" 6 mm to 32 mm
Square (max.)
1 Cavity - 1/4" to 1" 6 mm to 25 mm
Square Tube Shear
1/2" to 2" 12 mm to 51 mm
12 gauge 0.105" / 2.7 mm
Picket Tool
1/2", 3/4" & 1" 12 mm, 19 mm, 25 mm
16 gauge 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8" 51 mm x 10 mm
Offset Die Holder
Max. 40 ton Max. 36 mt
Strokes per Minute
in Light Material
58 spm [Punch Station] 1/4" Stroke
Strokes per Minute
in Heavy Material
26 spm [Punch Station] 3/4" Stroke
Hydraulics
2,600 psi 183 bar
Motor Standard
5 hp
208/230/460,
380/575v; 3 ph 3.73 kW
Motor Optional
5 hp
220v, 1ph 3.73 kW
Dimensions
L: 60-3/4" L: 154.5 cm
W: 30" W: 76 cm
H: 64-1/2" H: 164 cm
Shipping Weight
(may vary)
2,984 lbs. 1,354 kg
