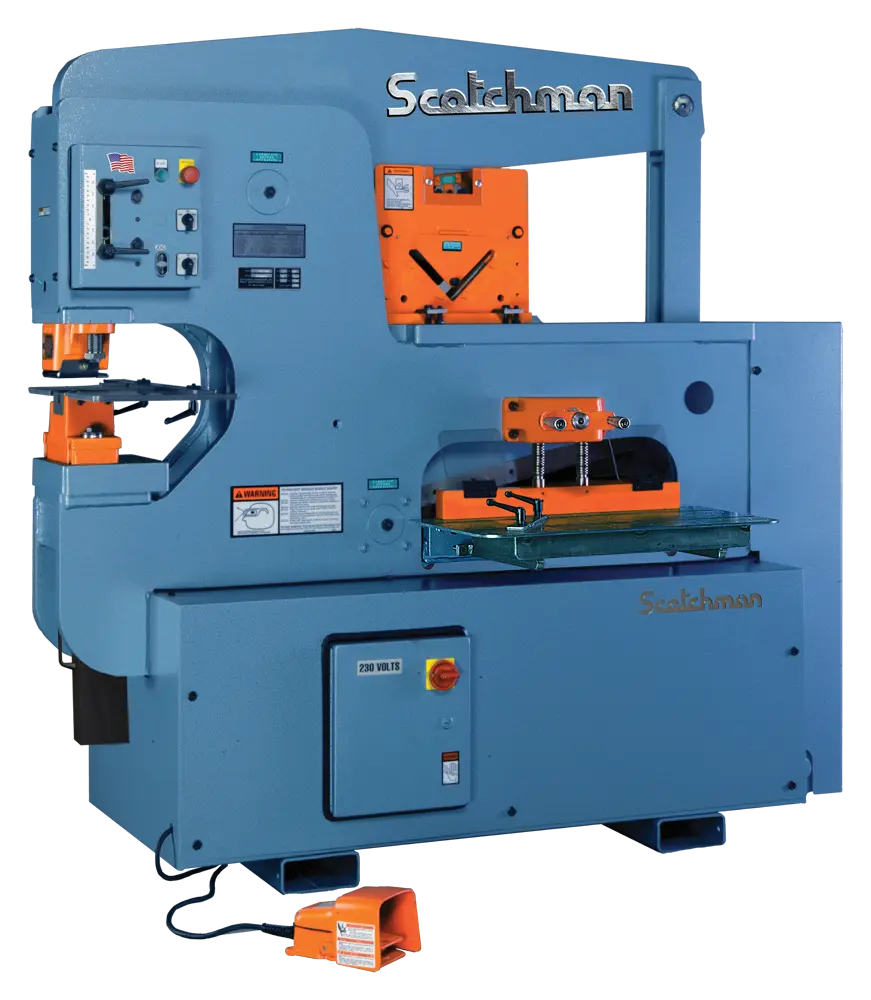

NEW SCOTCHMAN 12012-24M
Overview
Are you looking for an ironworker machine that can punch and shear 1” thick, 65,000 tensile plate? Scotchman’s 12012-24M is the machine for the job. The Scotchman 12012-24M hydraulic ironworker can punch a 1-1/2” hole through 1” plate, its 24” wide flat bar shear can shear 1” x 12” and 1/2” x 24” base plate and this machine is supplied with a 6” x 6” x 1/2” angle shear. The tool table design is a bonus feature that allows the operator to quickly and easily mount optional tooling making this ironworker adaptable to your specific job. The Scotchman 12012-24M is American-made and backed by our best-in-the-business 3-year parts warranty.
Specs
Punching Capacity
120 ton 108 mt
1-1/2" in 1" 38 mm in 25 mm
Special Tooling
4" Max. Dia. 102 Max. Dia.
Throat Depth
12" 305 mm
Flat Bar Shear
24" Length 610 mm
1" x 12" 25 mm x 305 mm
3/4" x 20" 19 mm x 508 mm
1/2" x 24" 12 mm x 610 mm
Angle Shear 90 degree
6" x 6" x 1/2" 152 mm x 152 mm x 12 mm
Angle Shear 45 degree
w/Tool
3" x 3" x 3/8" 76 mm x 76 mm x 10 mm
w/Bar Shear
4" x 4" x 1/2" 102 mm x 102 mm x 12 mm
Brake 12"
83 ton 75 mt
Brake 24"
65 ton 59 mt
Open End Brake
Max. 1/4" x 5"
[Flat or Angle Iron] 6 mm x 127 mm
Pipe Notcher
Schedule 40
3/4", 1", 1-1/4",
1-1/2", 2"
Rectangle Notcher
2" x 2-1/2" x 3/8" 51 mm x 63 mm x 10 mm
90 degree V-Notcher
6" x 6" x 5/16" 152 mm x 152 mm x 8 mm
Channel Shear 2" to 6" adj. 51 mm to 152 mm adj.
Unistrut Shear
Samples Required
Rod Shear
Round (max.)
9 Cavity - 1/4" to 1-1/4" 6 mm to 32 mm
Square (max.)
1 Cavity - 1/4" to 1" 6 mm to 25 mm
Square Tube Shear
1/2" to 2" 12 mm to 51 mm
12 gauge 0.105" / 2.7 mm
Picket Tool
1/2", 3/4" & 1" 12 mm, 19 mm, 25 mm
16 gauge 0.06" / 1.5 mm
Weld Coupon Bender (max.)
2" wide x 3/8" 51 mm x 10 mm
Offset Die Holder
Max. 40 ton Max. 36 mt
Strokes per Minute
in Light Material
1/4" Stroke [Punch Station] 47 spm
Strokes per Minute
in Heavy Material
3/4" Stroke [Punch Station] 19 spm
Hydraulics
2,600 psi 179 bar
Motor Standard
5 hp
208/230/460,
380/575v; 3 ph 3.73 kW
Motor Optional
5 hp
220v, 1 ph 3.73 kW
Dimensions
L: 79" L: 201 cm
W: 32" W: 81 cm
H: 75" H: 191 cm
Shipping Weight
(may vary)
5,204 lbs. 2,360 kg
