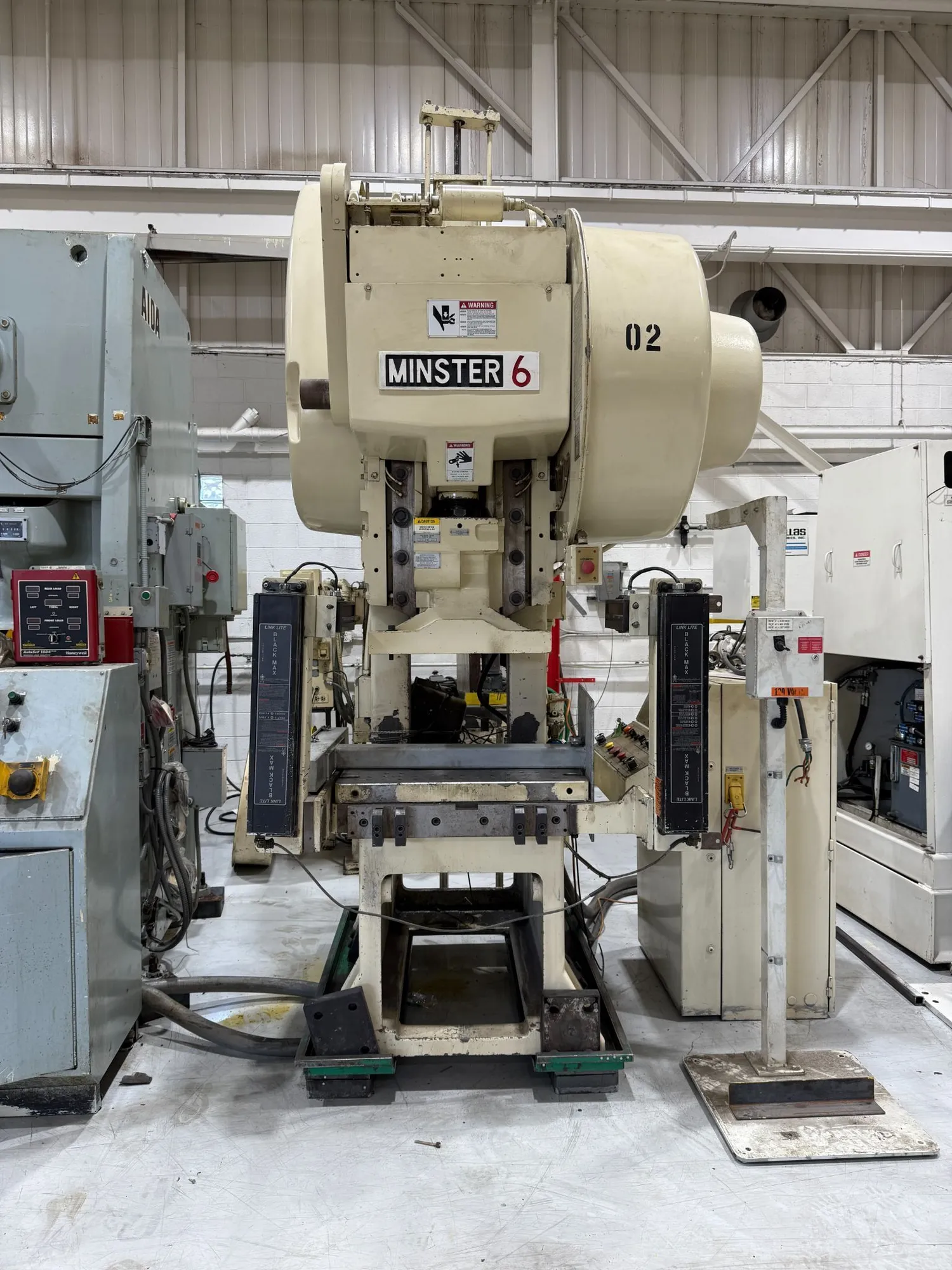

Minster 60 Ton Geared Driven Gap Frame Mechanical Press. 32" x 21" Bed Area, 24" x 14.25" Slide Area, 5" Stroke, 14.5" Shut Height, 45-90 SPM.
| Tonnage | 60 T | 54.431 t |
| Stroke | 5" | 127 mm |
| Shut Height | 14.5" | 368.3 mm |
| Bed area (Left to right) | 34" | 863.6 mm |
| Bed area (Front to back) | 21" | 533.4 mm |
| SPM min. | 45 strokes/min. | 45 strokes/min. |
| SPM max. | 90 strokes/min. | 90 strokes/min. |
| Adjustment | 2.75" | 69.85 mm |
| Weight | 12000 | 12000 |
Serial Number................................... 6SS-28364
Year of Manufacture……………………….. 1991
Model Number.................................. OBS-6
Capacity……………………………………..........60 Tons
Bed.................................................... 32” x 21”
Slide Area…………………………………......... 24” x 14”
Stroke................................................ 5”
Shut Height....................................... 14.5” SDAU Over bed
Bolster................................................ 3” thick
Strokes Per Minute........................... 45-90
Adjustment........................................ 2.75”
Overall Weight……………………………........12,000 # approx.
Floor Standing
Air Clutch and Brake
Omnilink LCD Touchscreen Controller
Console Mounted Control
Link 5010 Remote Connection Box
Link Black Max II Horizontal and Vertical Light Curtains
Dual Palm Buttons
Single/ Inch/ Continuous Operation
Power: 480/3/60
Forward/Reverse
Variable Speed Main Motor- 10 HP @ 1800 RPM
Minster Dual Ross Air Valve
