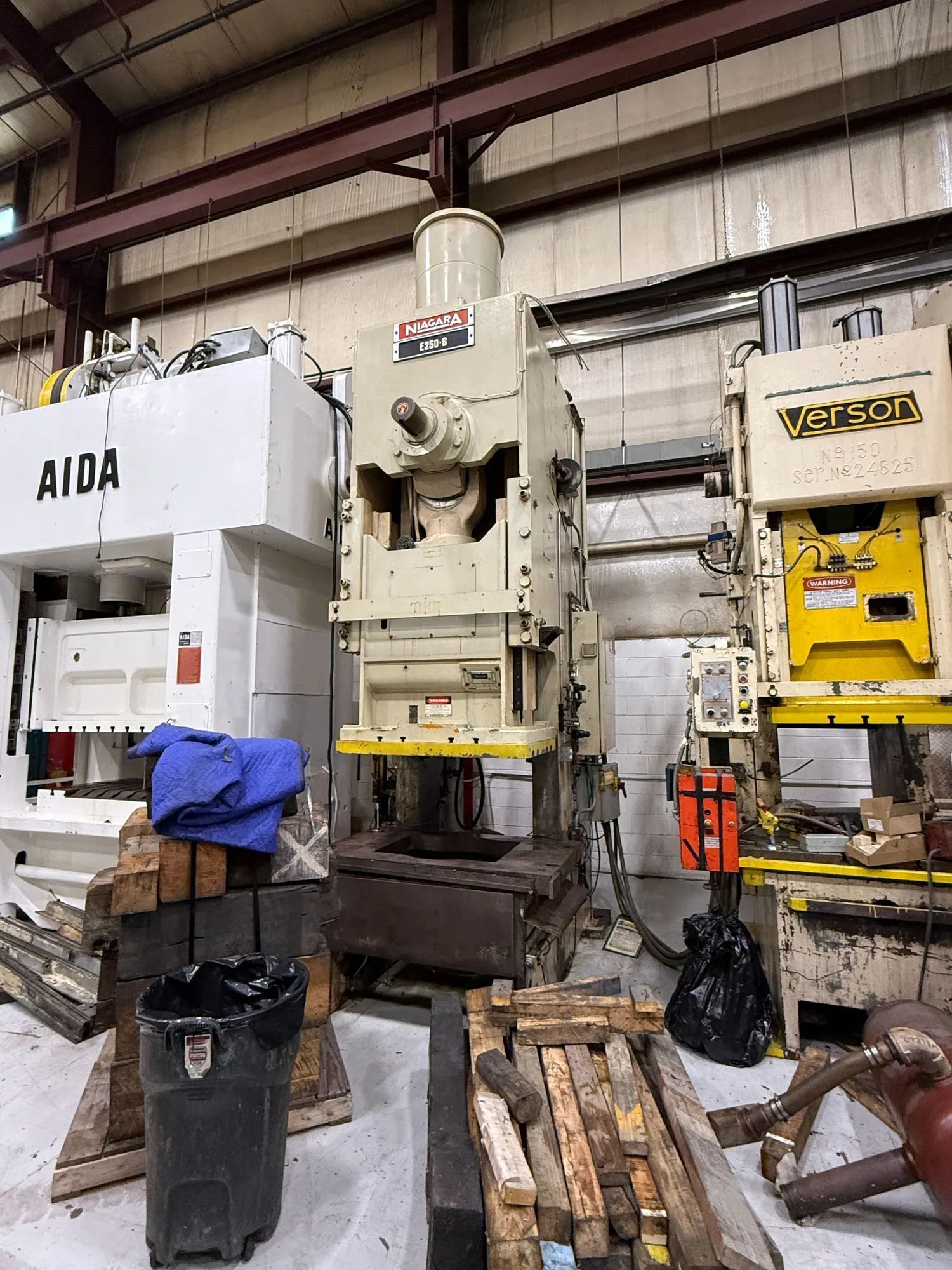

Niagara E-250 OBI, Back Geared, Single Crank Mechanical Press. 275 US Tons Capacity, 58" x 36" Bed area, 12" Stroke, 20-60 SPM.
| Tonnage | 275 T | 249.476 t |
| Stroke | 12" | 304.8 mm |
| Shut Height | 28" | 711.2 mm |
| Bed area (Left to right) | 58" | 1,473.2 mm |
| Bed area (Front to back) | 34" | 863.6 mm |
| SPM min. | 20 strokes/min. | 20 strokes/min. |
| SPM max. | 60 strokes/min. | 60 strokes/min. |
| Adjustment | 6" | 152.4 mm |
Serial Number: P53724
Model Number: E-250
Capacity: 275 US Tons
Capacity: 250 Ton @ .25” off bottom
Bed Area: 58” x 34”
Slide Area: 36” x 26”
Stroke: 12”
Adjustment: 6”
Shut Height: 28” over bed SDAU
Shut Height (Over Bolster): 19”
Strokes per Minute: 20-60
Floor Standing
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Palm Buttons
Wintriss DiPro RCB sensor inputs
Shadow 8 light curtains
4" Thick Bolster
Air Cushion
Motors and Controls
