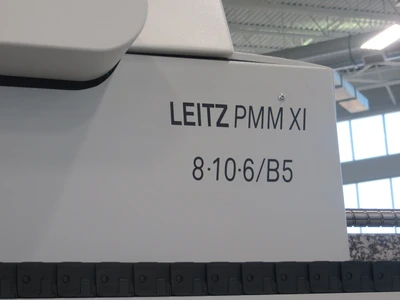

USED 2014 LEITZ PMM-XI 8.10.6

The Leitz PMM-Xi series has been developed for demanding inspection tasks which require the highest precision.  The basic mechanical priniciple is a very rigid and solid structure which fully realizes the "Closed Frame" design.  Its design ensures optimum stiffness characteristics and does not require a special foundation.  Very high accuracy levels can be achieved with very short lead times.  The new generation controllers allow various probes of dynamic Single Point Probing, Self Centering and High Speed Scanning to be optimally used on a the PMM-Xi
Ultra-High Accuracy and Extreme Flexibility
The Leitz PMM-Xi brings together maximized flexibility for multipurpose applications and highly accurate 3D metrology performance, enabling the use of a wide variety of tactile and optical sensors.

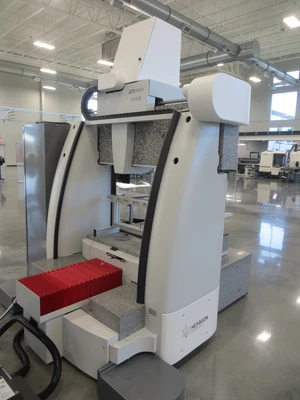

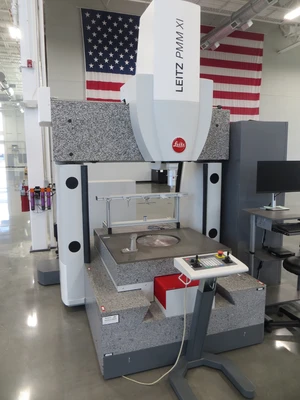

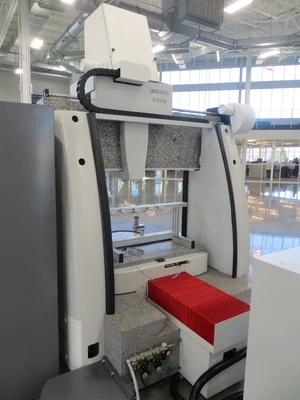

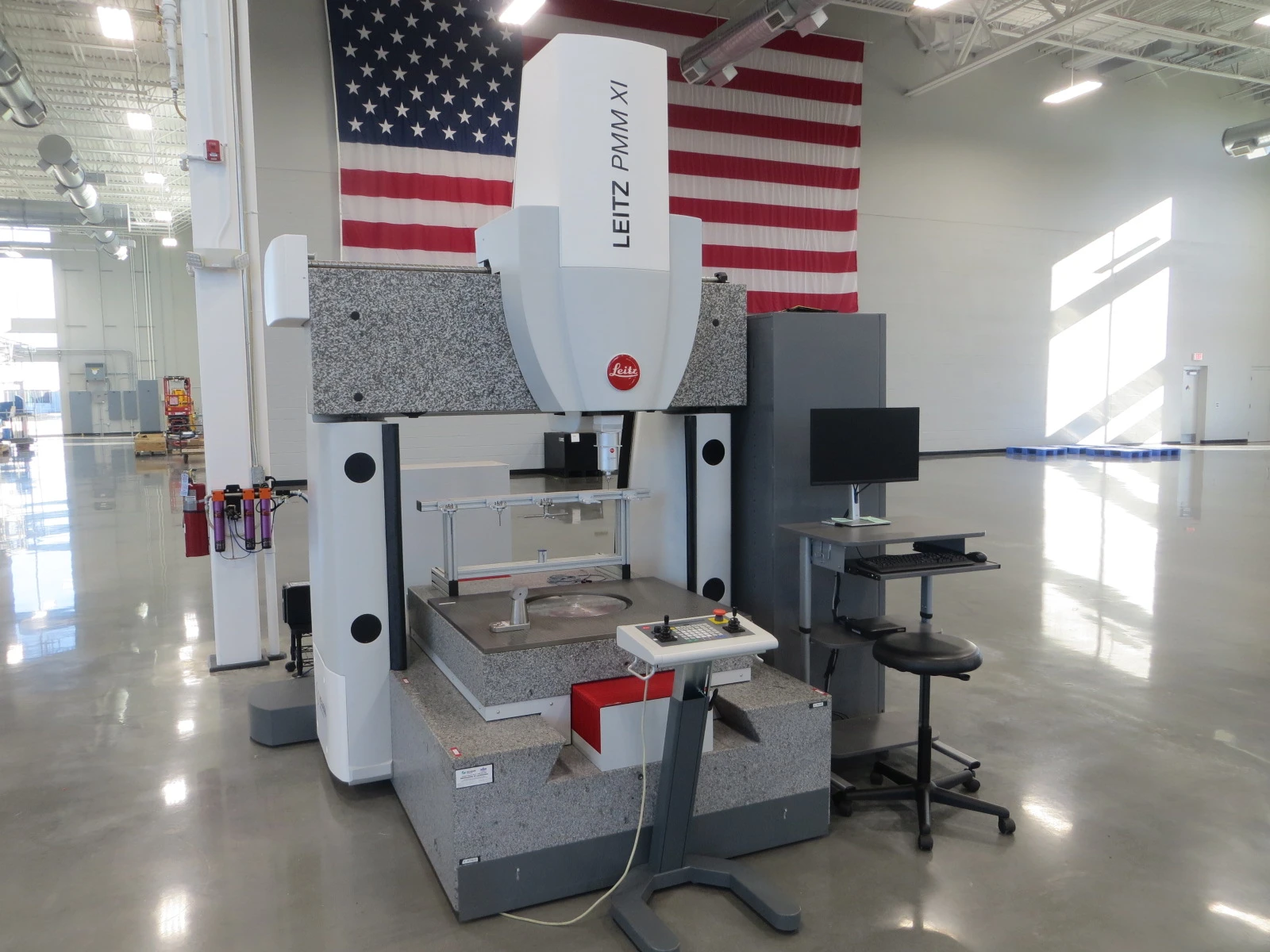

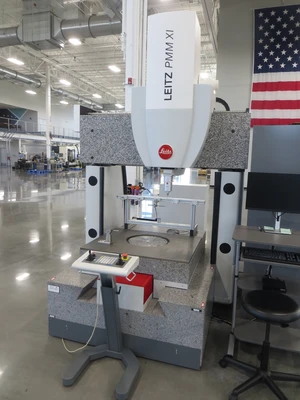

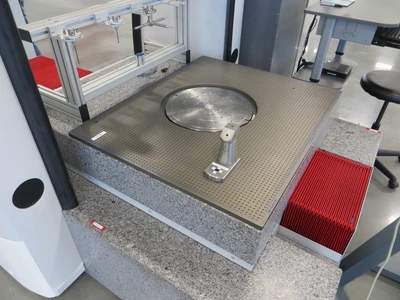

Every detail of the Leitz PMM-Xi series is focused on achieving certainty with accurate information users can trust. Providing durability and measuring consistency, the machine’s closed-frame design is comprised of a solid granite base, a fixed portal with cast iron pedestals and a granite crossbeam.
With excellent scanning performance due to variable high-speed scanning (VHSS), measurements can be carried out following the principle ‘as fast as possible, as slow as necessary.’ The scanning speed is adapted to known geometries in real time, with simple lines being scanned fast and the speed automatically changing when scanning complex passages.

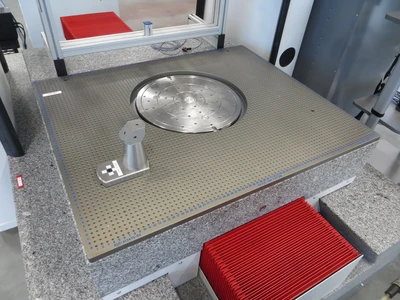

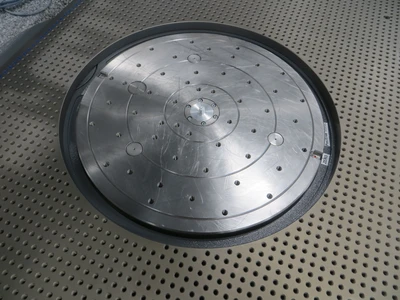

The optional use of the rotary table allows scanning procedures to be carried out with continuous 4-axis scanning, so even highly complex parts can be scanned quickly with a high point density.

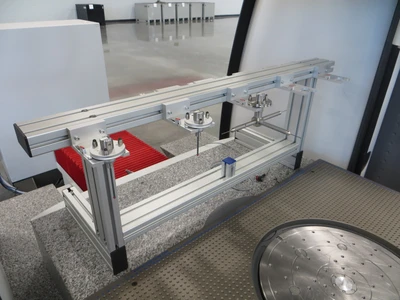

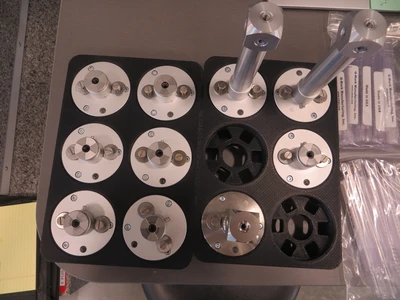

Additionally, a Leitz PMM-Xi can be equipped with the intelligent sensor automation system SENMATION. Using a universal interface, a wide variety of different sensors are changed fully automatically, guaranteeing a high degree of flexibility. SENMATION allows even the most complex measurement tasks involving different sensors to be carried out on one single coordinate measurement machine (CMM).
Applications:
Cylindrical gears

Spur, helical, double helical, splines (internal and external)
Clutch gears (internal and external)
Gear segments (minimum no. of teeth: one)
Gear racks

Bevel gears

Straight bevel, spiral bevel, hypoid bevel, crown gears
Interfaces: Gleason GAGE 4/WIN; Klingelnberg KIMOS, DMG

Gear cutting tools

Hob cutter, broach, shaper cutter, shaving gears, form cutter
