| Max Thickness | 0.25" | 6.35 mm |
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 20 hp | 14.9 kW |
| SPM | 38 strokes/min. | 38 strokes/min. |

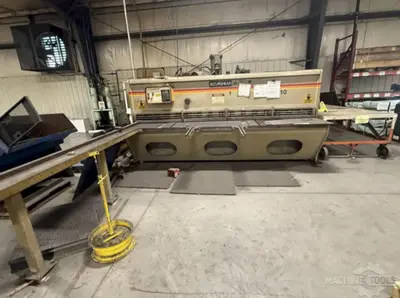

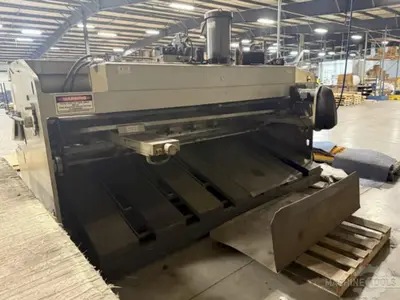

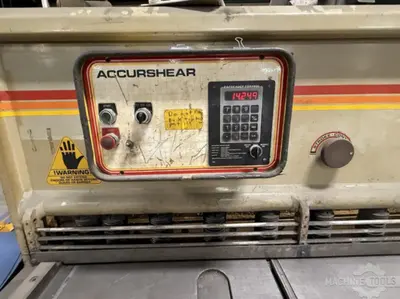

¼” X 10’ Hydraulic Shear with Front Operated Backgauge with Control, Foot Pedal Control, Squaring Arm and Adjustable Blade Gap.GENERAL SPECIFICATIONS Mild Steel Capacity: 10’ X ¼” Knife Size: 1” X 3” X 124”Rake: ¼” Per Foot (1°)Full Strokes Per Minute: 22Short Strokes Per Minute: 42Number of Hold Downs: 16Hold Down Tonnage: 16Motor: 20 HPVoltage: 220v / 440v / 3PhApprox Weight: 17,000 LbsApprox Shipping Dimensions: 147” X 85” X 85” HINCLUDES: Front Operated Backgauge with Control, Foot Pedal Control, Squaring Arm and Adjustable Blade Gap.
