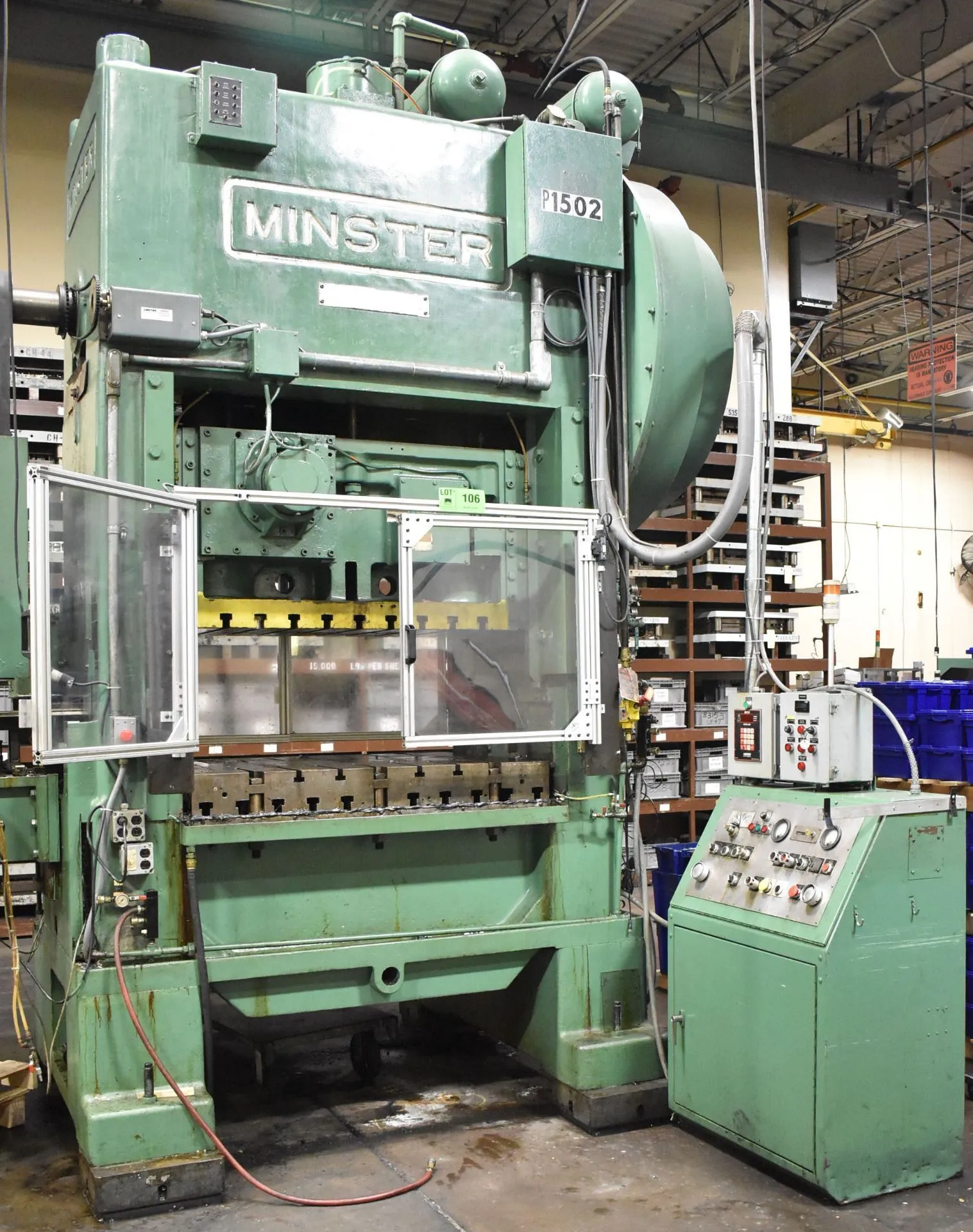

150 Ton Minster Model#: P2-150-54, 54" x 40" bed area, 6" stroke, 45-90 SPM, 23" Shut Height, 4" Adjustment, 20.5" wide window
| Tonnage | 150 T | 136.078 t |
| Stroke | 6" | 152.4 mm |
| Shut Height | 23" | 584.2 mm |
| Bed area (Left to right) | 54" | 1,371.6 mm |
| Bed area (Front to back) | 40" | 1,016 mm |
| SPM min. | 45 strokes/min. | 45 strokes/min. |
| SPM max. | 90 strokes/min. | 90 strokes/min. |
| Adjustment | 4" | 101.6 mm |
| Windows Width | 20.5" | 520.7 mm |
Model Number: P2-150-54
Serial Number: P2-150-23153
Bed Area: 54” x 40”
Stroke: 6”
Strokes per Minute: 45-90
Shut Height: 23” over bed
Bolster Plate: 5” thick t-slotted plate
Slide Adjustment: 4”
Windows: 20” wide window
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Minster Monitor Flow Lubrication System
Power: 480 Volt/3 Phase
Dual Ross Valve
Ametek Gemco PLS Brake Monitor
Vibration Isolation Levelers
8 Point Gibbing
Motors and Controls
Motorized Ram Adjustment
