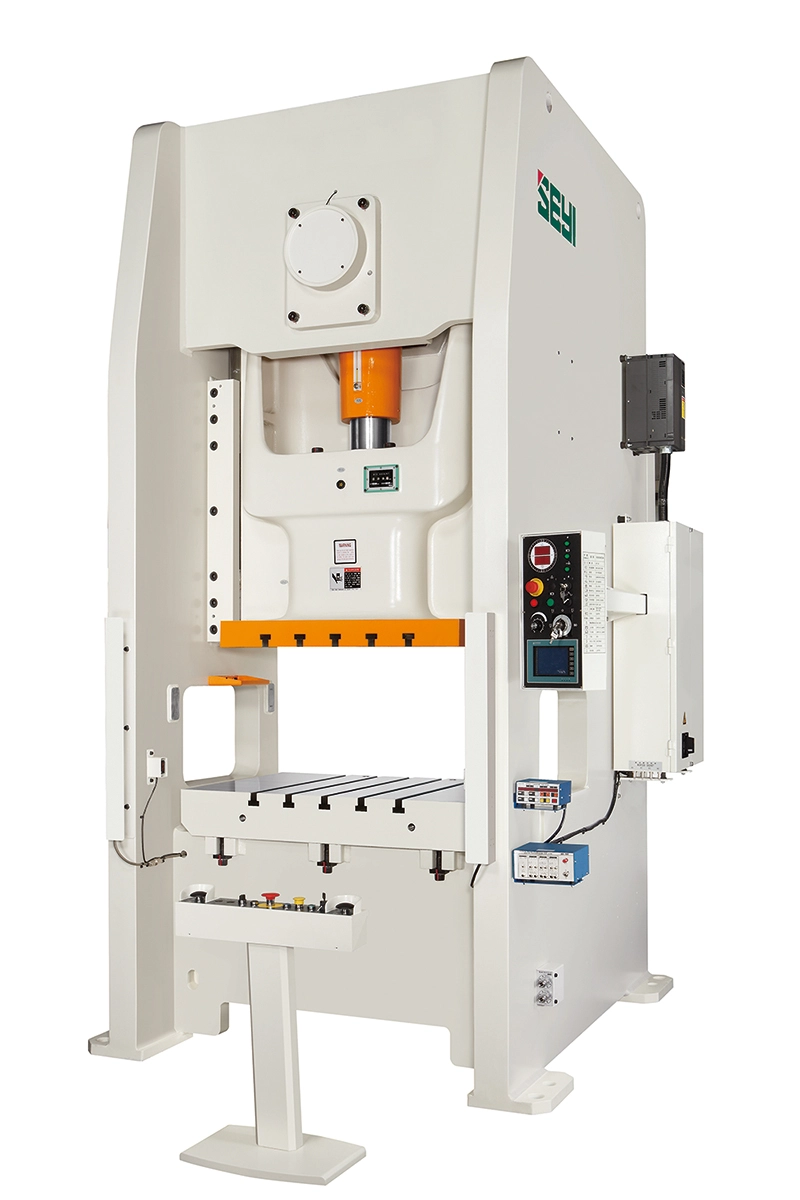

SNS1 SERIES is a single point, straight side press with a fabricated, unitized frame designed to offer an optimized solution for minimal deflection to achieve high precision stamping.
SNS1 SERIES of Straight Side, Single Crank Presses includes 80-300 Ton Presses
It is designed for either automatic or hand-fed general stamping applications such as blanking, piercing, forming, drawing, bending, etc.
FEATURES:
Virtually eliminates angular deflection, providing increased precision for progressive die applications and reducing maintenance costs on tooling.
Slide area is 15-20% greater than comparable C-frame presses, this allows for larger tools
Large 6-pt gibs are centered in the slide body providing better resistance to off-center loads
High torque wet clutch/brake system provides low noise + long life operation with minimal maintenance
Wintriss WPC 2000 Clutch/Brake Control. User friendly, multi-function control system allows for easy integration of auxiliary equipment + automation
Variable frequency drive is more energy efficient + saves up to 30% on electricity demand.
Designed + built to meet or exceed CNS 1st standards
