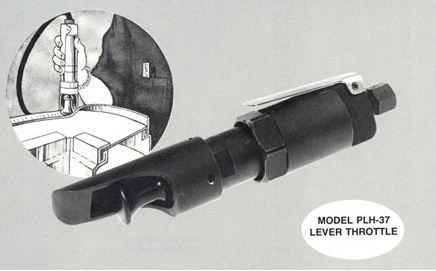

Modern Pittsburgh Lock Hammer Model PLH-37

Capacity: 18 ga
The Modern Pittsburgh Lock Hammer is a hand-held pneumatic tool capable of seaming straight runs, inside or outside radii at the rate of 15ft. per minute on 18 to 30 gauge material.
FEATURES
Lightweight
Floating head
E-Z grip handle
Hardened alloy steel parts
One hand operation
Screened air inlet bushing
Air line lubricating oil (included)
Extra flutter valve
Steel backhead

Capacity 18ga to 30ga steel

400 strokes per minute

Length PLH-37—9"

Weight 4lbs.

Air consumption 17 CFM

Hose connection ¼” NPT

Operating pressure 60 to 80 lbs.

Body DIA. 1.8”

Model PLH-37—straight grip
