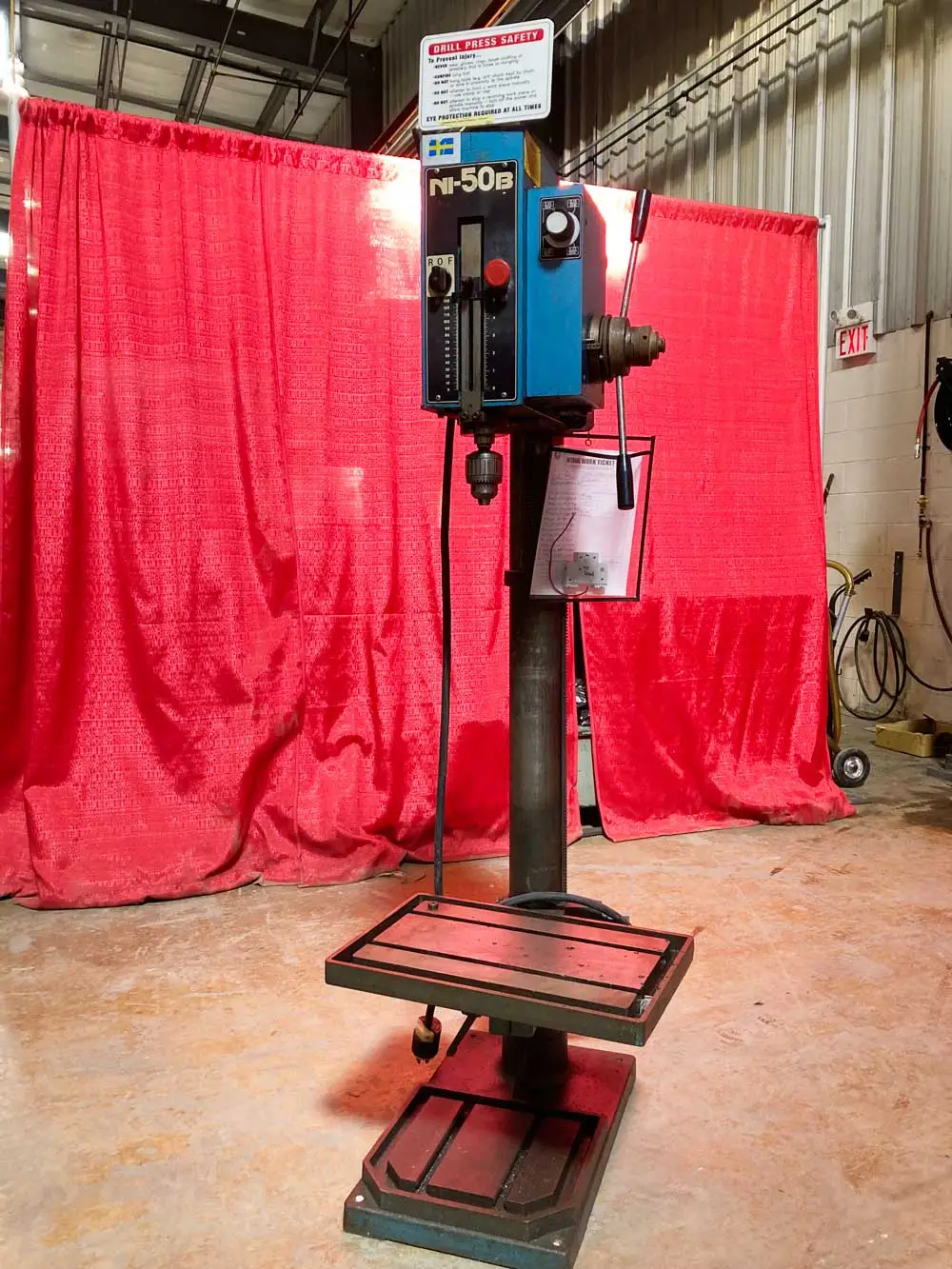

USED NIDER N1-50B

EQUIPPED WITH:
Specifications
MODEL: N1-50B
SERIAL NO.: N/A
Maximum Drilling Diameter 2” STEEL
Maximum Travel of Spindle 5 1/4″
Taper of Spindle Hole Morse # 4

Distance – Center of Spindle to Vertical Column 12 5/8″
Spindle nose to table surface 33 1/4” max.
Spindle nose to base plate surface 47″ max.

Dimension of working table 21″ X 13″
Swivel of table 45º
Dimensions of base 14 1/2” X 13”
Diameter of Column 4″
Speeds (8) 100 to 2200 RPM
Feed Speeds (8) “/rev 0.004 – 0.300
Two-Speed Motor: 1.5/1.1 HP
Weight: 1,000 lbs
Dimensions (LxWxH): 38″ x 25″ x 78″
FOB Point: Mississauga, ON
Condition: Pre-owned
