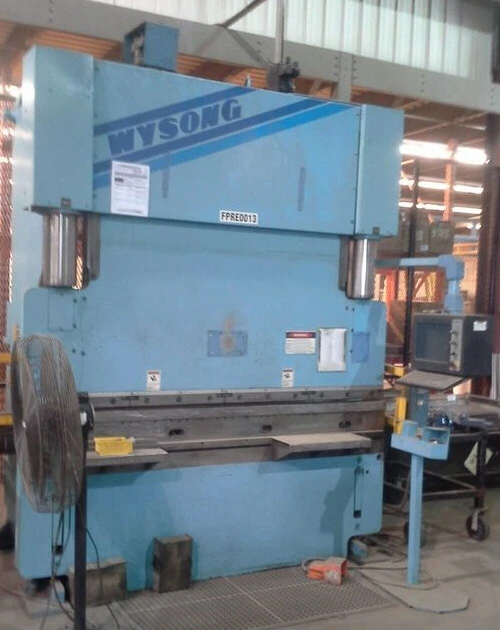

WYSONG (Used) CNC HYDRAULIC PRESS BRAKE, 8'x140TON, PHP 140-96
Overview
Description
Model
Specifications
ITEM ID: PHP 140-96-UJ
CAPACITY: 8' x 140 TON
SERIAL NO: HPB 53-102X
OVERALL BENDING LENGTH: 8’
DISTANCE BETWEEN HOUSINGS: 6’ 6”
STROKE OF RAM: 14”
OPEN DAYLIGHT: 23”
SPEED (ADVANCE): 300 IPM
SPEED (PRESSING): 20 IPM
SPEED (RETURN): 200 IMP
MAXIMUM TRAVEL OF BACK GAUGE: 40"
TABLE WIDTH: 5.5"
DISTANCE FLOOR TO TOP OF BED: 32"
THROAT DEPTH: 7"
YEAR: 1995
MOTOR: 15HP
WEIGHT: 18,000 LBS (approx)
DIMENSIONS (LxWxH): 115" x 84" x 129"
LOCATION: MONCLAVA, OHIO, USA
