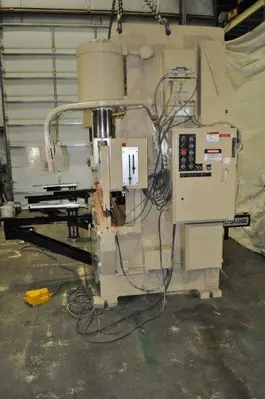

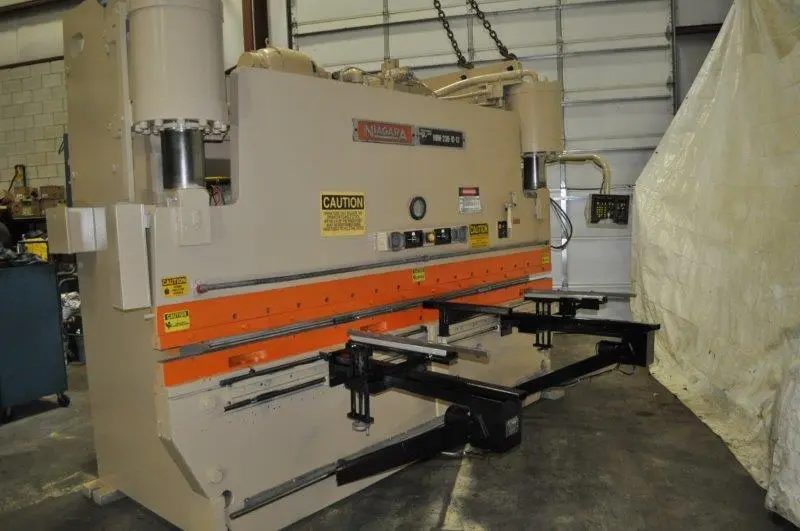

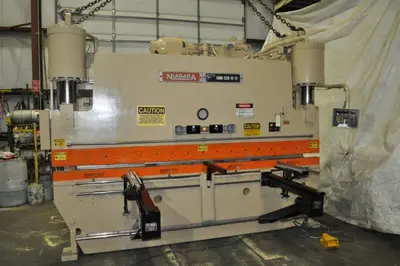

NIAGARA Press Brake 12’ x 230 ton capacity, MODEL HBM 230-10-12
Overview
Specifications
MODEL: HBM-230-10-12
CAPACITY: 230 Ton
SERIAL#: 52451
OVERALL BENDING LENGTH: 12’
DISTANCE BETWEEN HOUSINGS: 10’6”
STROKE LENGTH: 10”
SPEED-APPROACH: 216 I.P.M.
SPEED-WORKING: 49 I.P.M.
SPEED-RETURN: 216 I.P.M.
DAYLIGHT: 17”
YEAR: 1987, approx.
MOTOR: 30 HP
WEIGHT: 23,000 lbs.
DIMENSIONS (LxWxH): 160” x 78” x 117”, floor stand
LOCATION: Monclova, OH
