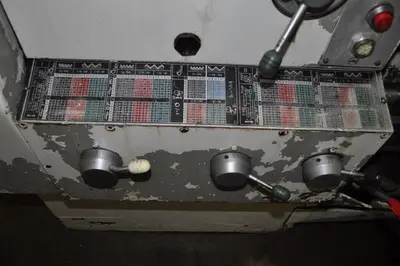

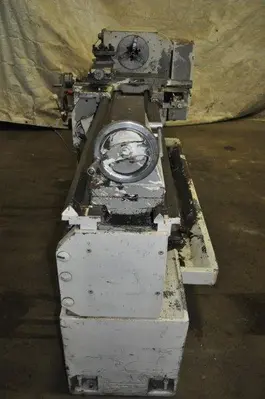

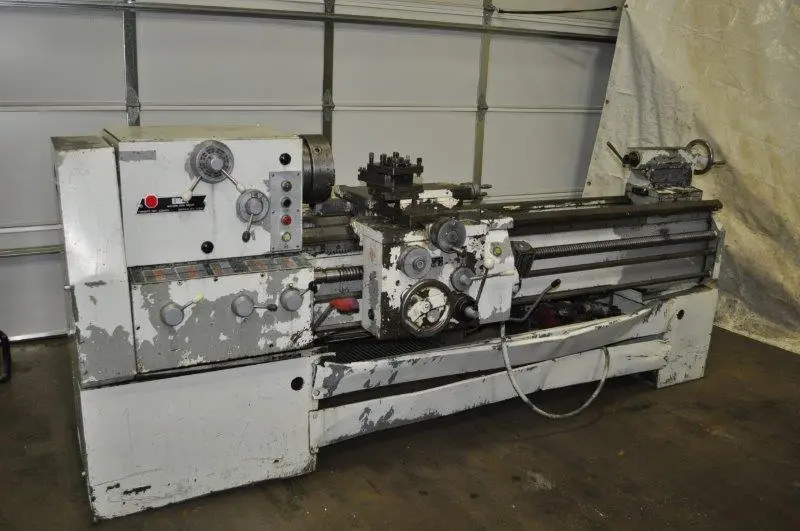

ELLIOT ENGINE LATHE 18” Swing, Model 15

ITEM ID: 15ELL-UJ

MODEL: 15

SERIAL #: 400-1500-18-4116

SWING OVER BED: 18”

SWING OVER CROSS SLIDE: 10”

CENTER DISTANCE: 60”

SPINDLE BORE: 2.5”

RANGE OF SPINDLE SPEEDS: 20-2000  RPM

LONGITUDINAL FEED: YES

CROSS FEED: YES

METRIC/ INCH THREADS: YES

NET WEIGHT, APPROXIMATELY: 6,500 lbs.

DIMENSIONS: 117” x 50” x 50”
