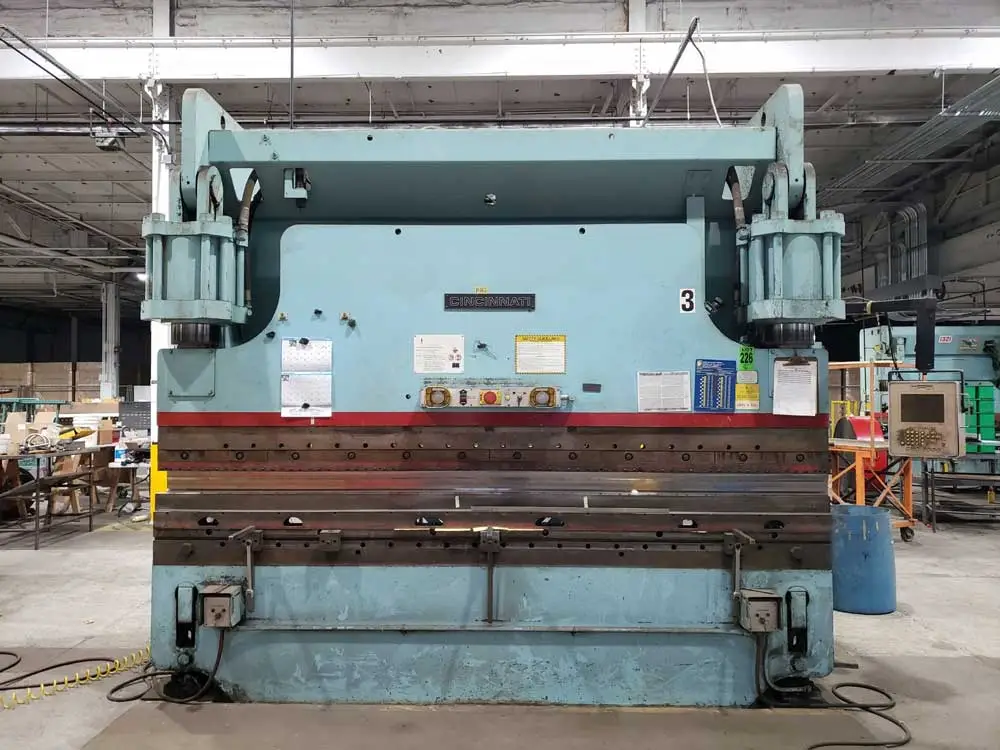

Pre-owned CINCINNATI Press Brake 12’ x 350 ton capacity
Overview
Description
EQUIPPED WITH:
Specifications
MODEL: 350CBX10
CAPACITY: 350 Ton
SERIAL#: 48530
OVERALL BENDING LENGTH: 12’
DISTANCE BETWEEN HOUSINGS: 10’6”
STROKE LENGTH: 10”
GAP DEPTH: 10” from Centre of Die
SPEED-APPROACH: 65 I.P.M.
SPEED-WORKING: 9 I.P.M.
SPEED-RETURN: 67 I.P.M.
DAYLIGHT: 18”
YEAR: 1992 (Approx.)
WEIGHT: 39,000 lbs.
DIMENSIONS (LxWxH): 150” x 65” x 144” Approx.
LOCATION: Monclova, OH
CONDITION: PRE-OWNED
Equipped With
Ram & Bed Machined for Angles / Flanges

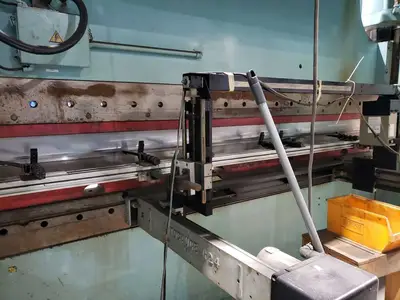

Automec, G24 Back Gauge (X, R)
Autogauge CNC 2000 Control
Die Holder, 12’
2 Foot Pedals, with Palm Buttons
