Model: GIC
The unique module for industrial production cylindrical grinding. Easy, fast, and tool-free mounting on the base machine (suitable for GI 75, GI 75 2H, GI 150, GI 150 2H).

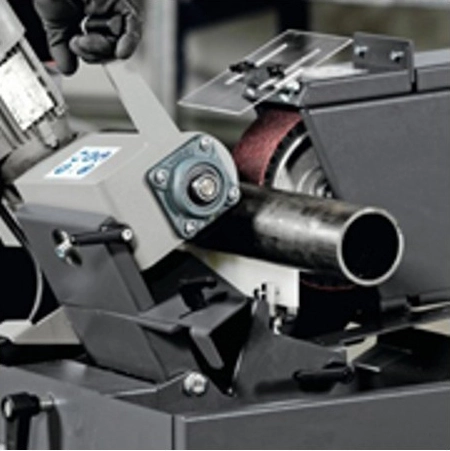

The GRIT GIC handles all “cylindrical grinding” tasks. Finish grinding of straight tubes and cylindrical stock, pre-grinding for chrome plating and polishing, as well as pipe grinding all the way to perfect surface finishes.
It achieves maximum surface quality and can be adjusted for different pipe dimensions. Ideal for applications in railing fabrication and plant construction.
Always on the right track
Various guide rails are included in the scope of delivery that are tuned to the surface quality of the workpiece. The guide rail made of brass is made for rough surfaces such as corrosion, scale, etc., or for dry grinding. The nylon rail is the perfect choice for surface polishing and sensitive material.
EQUIPPED WITH:
– Short change-over time, low vibration and noise
– High surface quality
– Flexible processing of pipe from 3/8 – 5-1/8 in (10 to 130 mm) diameter
– Robust welded construction
– OPTIONAL: Cooling lubricant module for wet grinding provides cool surfaces, dust free life for grinding belts
Minimum Part Size: handles tube from 3/8″ – 5-1/8″ diameter
Electrics: 575V (180 watts)
Weight: 143 lbs
