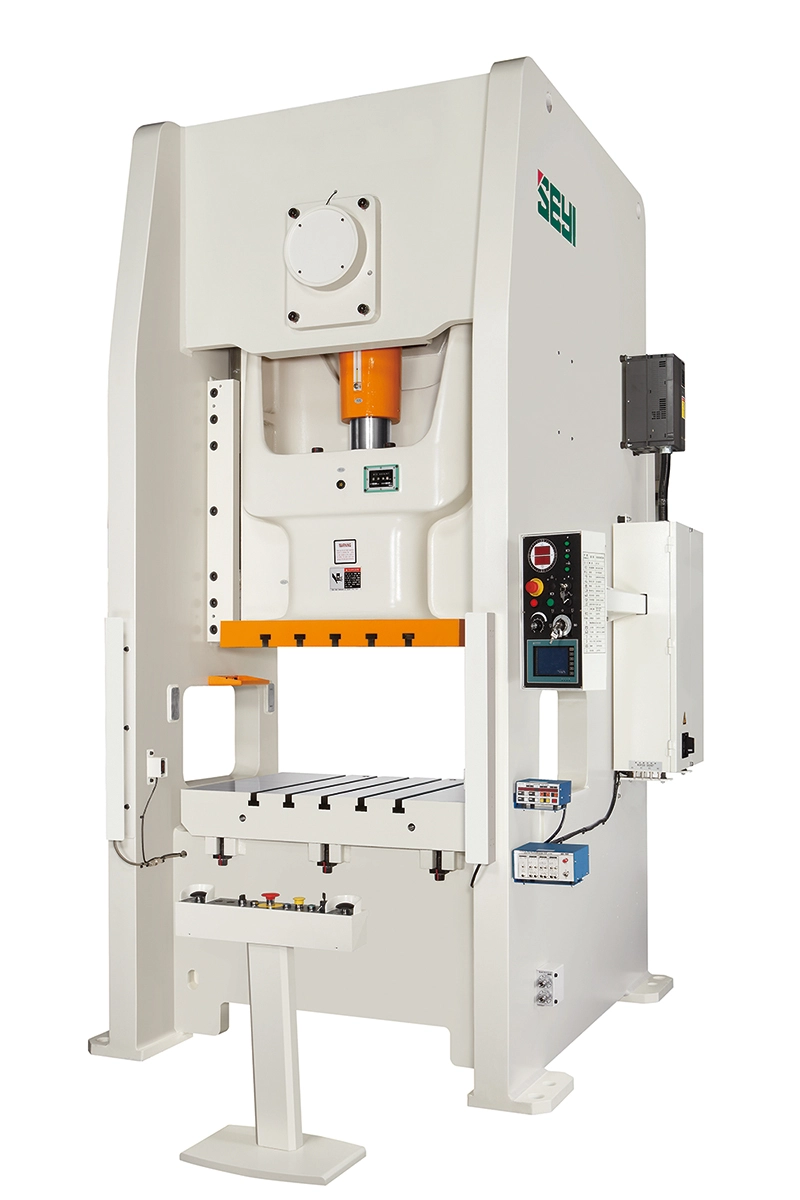

Solid Frame Crank Link Press (SLS Series) is a single point, straight side press with a fabricated, unitized frame designed to offer an optimized solution for minimal deflection to achieve high precision stamping. Link motion features minimized shock, noise, heat and vibration while improving die life and material spring back conditions.
SLS1 SERIES of Straight Side Single Crank Presses include 160-500 Ton Presses
FEATURES
Unitized straight side frame suitable for precise progressive tooling job.
“Zero angle” deflection of frame + cost effective in tooling maintenance work.
Greater slide area in comparison to the C type presses that can accomodate larger tooling to work more efficiently.
Patented high torque wet clutch/brake system provides low noise + long life operation with minimal maintenance.
Link drive mechanism with the slide stroke feature of low speed during working stroke and fast speed of idle stroke.
Soft touch of operand lower tooling eliminates excessive vibrations, heat & noise. Prolongs tooling life span + provides precise working component.
Wintriss WPC 2000 Clutch/Brake Control. User friendly, multi-function control system allows for easy integration of auxiliary equipment + automation
Variable frequency drive is more energy efficient + saves up to 30% on electricity demand.
Designed + built to meet or exceed CNS 1st standards
