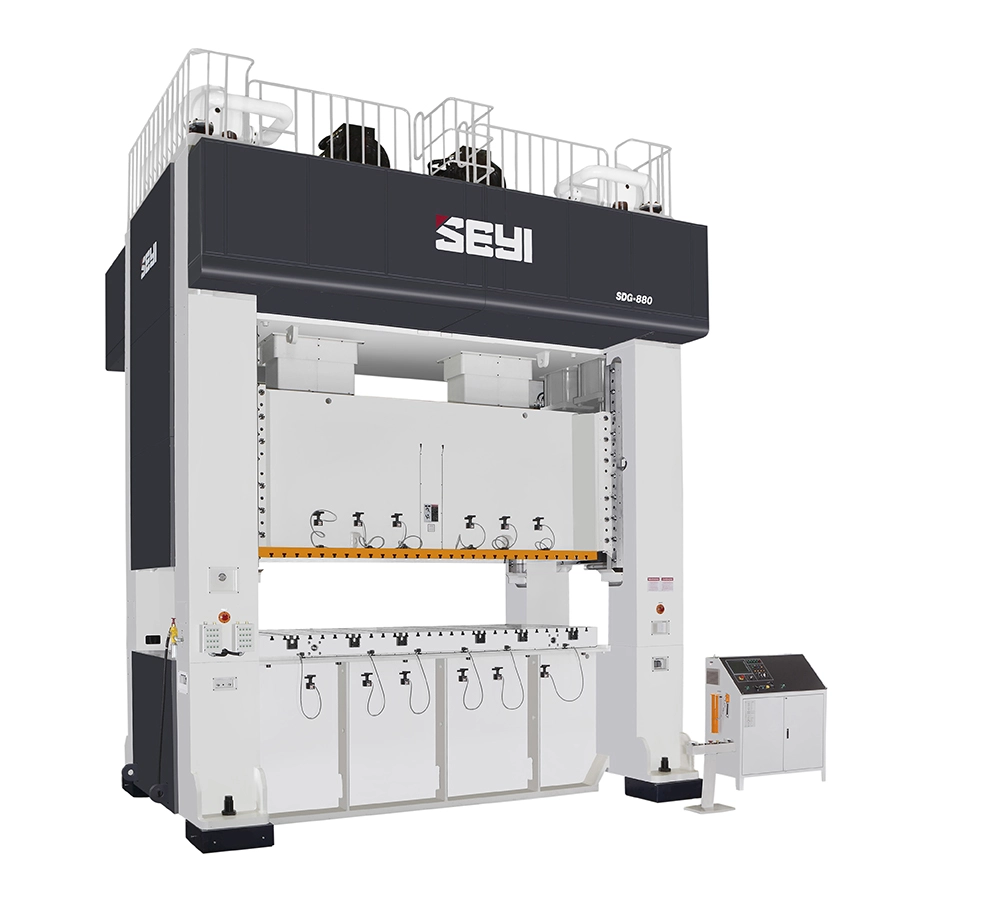

SEYI SDG2 SERIES TWO POINT CRANK SERVO PRESS

Three Point Tie-rodFrame Crank Servo Press (SDG2 Series) features the latest version of servo motor technology, high rigidity frame will decrease deflection, and will increase quality. User friendly control system that offers full control over the stroke profile to allow metal stamping that can’t be done on conventional mechanical presses.
SDG2 SERIES INCLUDES 440-1320 TON PRESSES
FEATURES:

Main motor, flywheel, clutch and brake are replaced with a High Torque-Low RPM Servo motor.
Direct Drive eliminates down-gearing, loss of tonnage (especially high in the stroke), belts + other parts typically associated with knuckle or link-type servo presses.
Unique Servo Pressure Stabilizer system eliminates power surges and conserves energy through a series of capacitors that equalize power consumption + store unused energy.
Advanced high strength three piece tie rod frame structure enables the hold of tight tolerances under longer dwells without stretching/elongating the frame
Eight point gib slide guiding for improved accuracy and precision
Electronic Overload Protection allows for immediate reaction – with automatic, programmable ram back-up
Stroke Lengths up to 400mm ( 15.7” )
4″ High Resolution Color Display
7 Programmed Profiles + Freeform Motion
200 Job memory storage
8 Die protection sensor inputs
16 Programmable timing switches
Under longer dwells without stretching/elongating the frame
