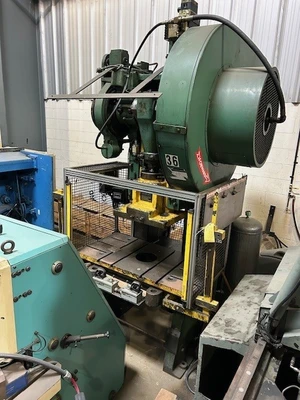

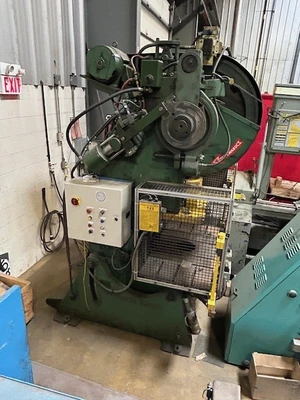

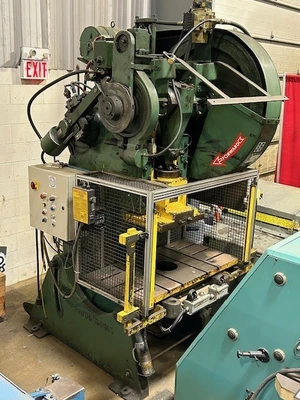

USED BROWN BOGGS 17 ½ LJA

Filter / Regulator / Lubricator

STI Safety Light Curtains, 24”

Upgraded Control “MHD Engineering Control”

Dual Ross Valve

Automatic Lubrication

Bolster Plate, 24” x 48” x 1 3/4”

Hand Push Palm Buttons, Start/Stop

Air Counter balance

Ram Block

Physical Barrier Guarding

LOX Valve

Crankshaft Safety Hook

MODEL: 17 ½ LJA

CAPACITY: 60 TON

SERIAL#: 75452

STROKE: 5”

SHUT HEIGHT: 12 3/8” OVER BED

RAM ADJUSTMENT: 3”

BED AREA L-R x F-B: 32” x 22 ½”

RAM AREA L-R x F-B: 21” x 16” Flanged

SPEED: 86 SPM approx.

THROAT DEPTH: 11 ¼” approx.

SHANK HOLE DIAMETER: 2” ROUND

WIDTH of OPENING THROUGH FRAME: 15” approx.

DISTANCE FROM BED TO FLOOR 33-1/2”

MOTOR: 5 HP MAIN, 575/3/60

WEIGHT: 10,600 LBS approx.

DIMENSIONS (LxWxH): 79”x63”x112” approx.

FOB POINT: MISSISSAUGA, ON
