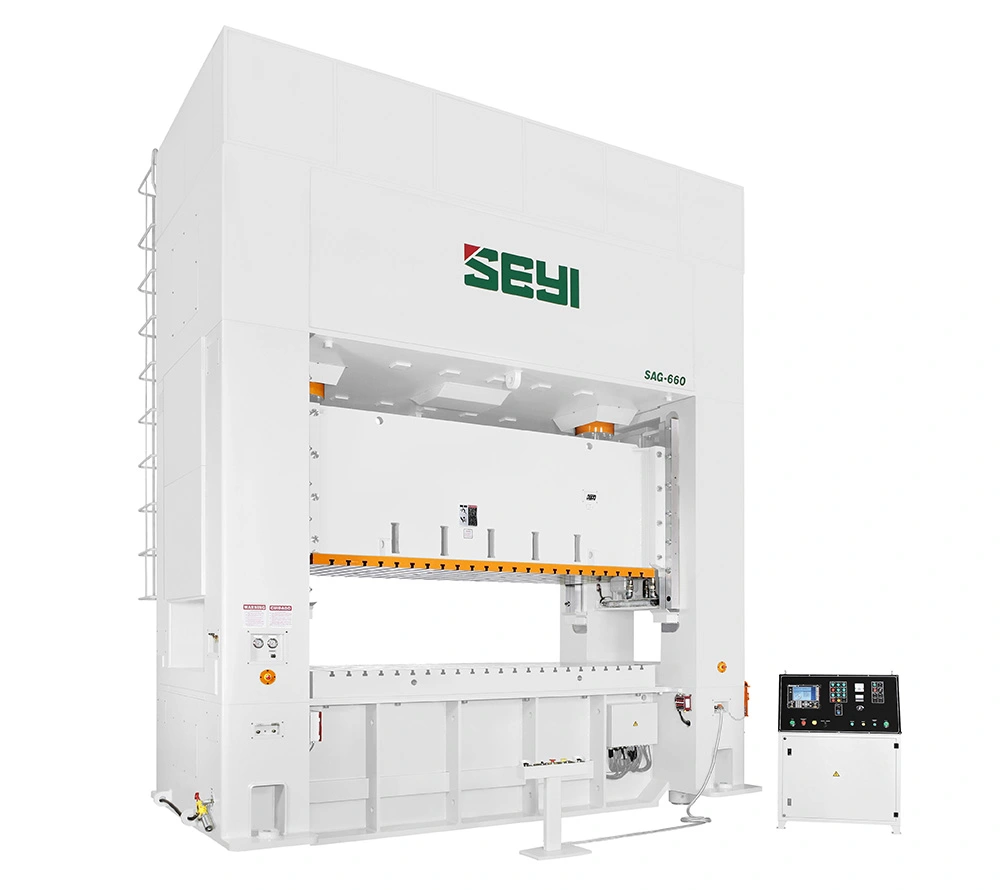

SEYI SAG TIE ROD FRAME CRANK PRESS

Tie Rod Frame Crank Press (SAG Series) is a two point, straight side press with a Tie Rod construction frame designed to offer an optimized solution for minimum deflection to achieve high precision stamping. This Heavy Duty Press is ideal for the rigors of automotive stamping and many other applications.
SAG SERIES OF STRAIGHT SIDE, DOUBLE CRANK PRESSES INCLUDE 330-1100 TON PRESSES
FEATURES:

Heavy Duty Tie Rod Frame structure consisting of Bed, Slide and 1 Piece Columns machined to achieve tight tolerances, minimal deflection making it most suitable for precision progressive die applications
Centre Drive design eliminates torsional twist found in “ end “ drive presses and allows for wide suspension points to increase eccentric load capacity. Patented high torque wet clutch/brake system provides low noise + long life operation with minimal maintenance
Variable frequency drive is more energy efficient + saves up to 30% on electricity demand
Wintriss WPC 2000 Clutch/Brake Control or Smart Pac (optional). User friendly, multi-function control system allows for easy integration of auxiliary equipment + automation
Designed + built to meet or exceed CNS 1st standards
