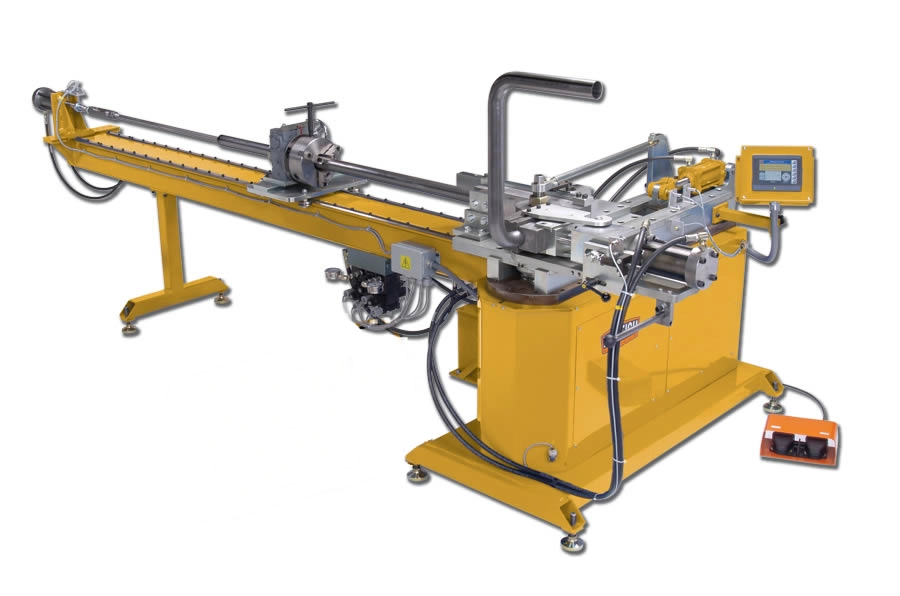

RMD Electric Mandrel Bender

The RMD Electric Mandrel bender is designed for the small fabricator who needs an exhaust bender for bending from 1” to 3” OD.
Great for tight radius bends (down to 1-1/2 times the OD).
User friendly operation
Perfect for small to mid-sized productions
Quick changeovers and cycle times
Touch screen controls; able to input 140 programs with 10 bends per program

Key features:
10 foot extraction table
Rotary positioning carriage with 4 manual stops
Set up of tooling consists of: rotary bending die, clamp die, pressure die, mandrel, wiper die (additional tooling available depending on bending requirements)
Right handed mandrel pipe bender
Single stack tooling
Electrical mechanical drive system for bend axis
Clamp die has hydraulic and mechanical locking system that reduces the possibility of slippage
Mandrel extractor uses powerful hydraulic system to insert, hold, and extract the mandrel
Follower die is positioned and held tight against rotary die and wiper die
Foot pedal control works in conjunction with touch screen instructions

Max Bending Strength Capacity:
Round Mild Steel – 3″OD x .125″ Wall
Round Aluminum – 3″OD x .188″ Wall
Round Stainless – 3″OD x .065″ Wall
Square Mild Steel – 2″x2″ x .188″ Wall
Solid Bar Mild Steel – 1.181″OD

Max bend radius – 9” CLR

Max bend angle – 190 degrees

Max length over mandrel – 10”

Bending speed (DOB) – 18 degrees per second

Accuracy of DOB - +/- 0.50°

Machine Weight - 2100 lb

220V x 60Hz x 3 Phase
