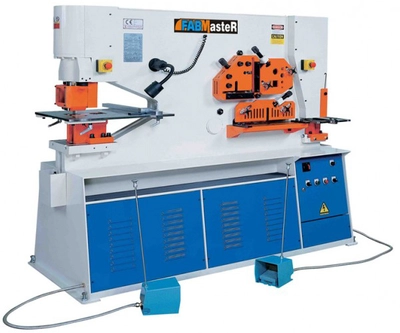

FABMASTER Dual Cylinder Ironworkers

Available in 66, 88, 110, 135, and 180 ton models.
Fabmaster hydraulic ironworkers are designed with multiple functions to save time, labour, energy, and cost. The double cylinder S/SD series is built for high power, quality, and reliability. These models are equipped with two foot control pedals that allow separate operations to be performed simultaneously. Features a large range of optional or custom-designed tooling.
Key features on dual cylinder ironworkers:
Separate double acting cylinder for independent operation from shearing stations
Cylinder ram with flat surface for rigid guiding to ensure proper alignment of tool
Keyed punch ram to ensure alignment of shaped tooling
Guided cylinder ram at 3 positions to provide extra support and absorb side-load forces for added protection of cylinder seals
Punching station features a large cylinder mounting plate to ensure maximum cylinder support under heavy load
One solid punching base plate with T-slot grooves for universal tool fixture
Monoblock machine frame construction that integrates both bolts and welding reinforcement to provide maximum frame structure rigidity
Machine base is made from welded channel in a grid pattern for a rigid machine foundation
Work light and electric back gauge
