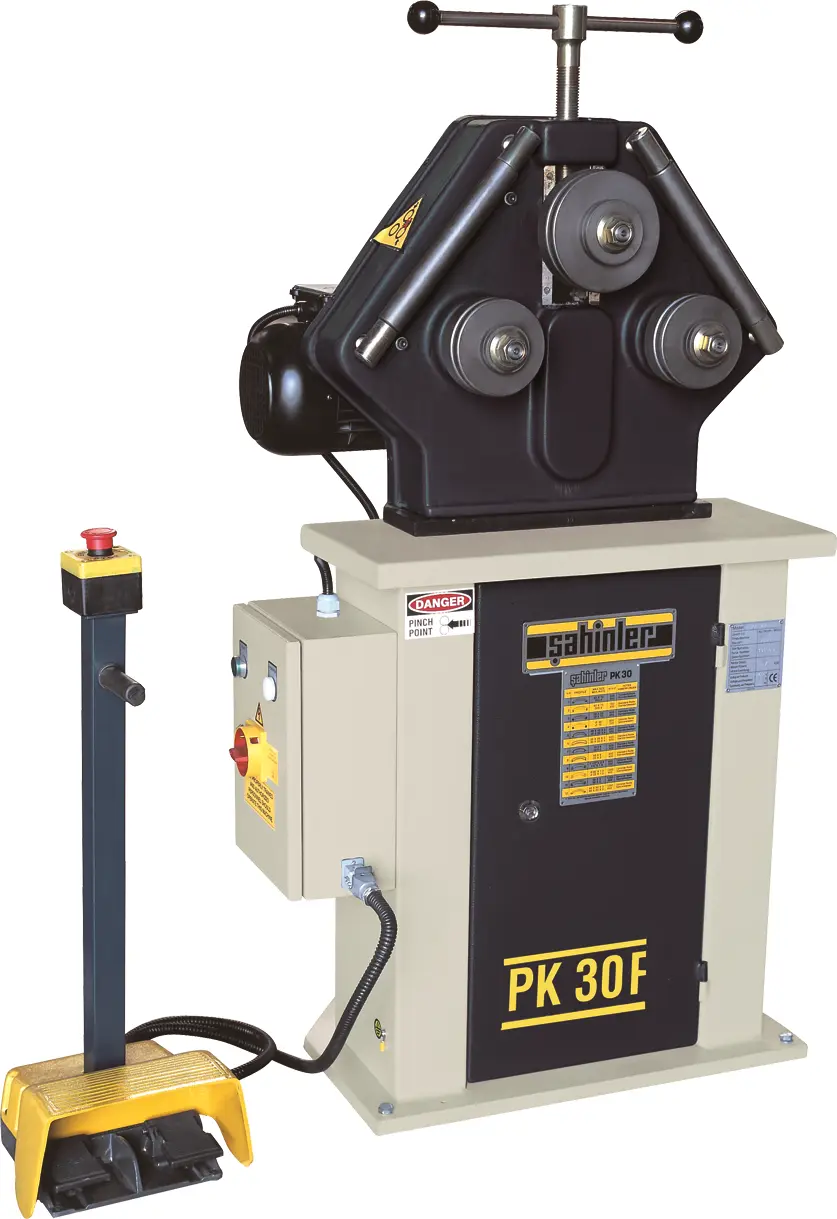

SAHINLER ANGLE BENDING ROLL MODEL PK-30

This is a fabricated steel machine with hardened and ground rolls. The top roll can be adjusted up and down manually. Two rolls are driven. The machine has a mobile foot pedal station and can be positioned vertically or horizontally. It has manual guide rolls.
CAPACITIES:
Hardened Rolls for standard profiles included with machine
Forward-reverse foot pedal controls, 2-rolls powered
All Bending capacities are calculated based on 24 kg/mm2 Yield Point Material  (34,000 PSI Yield)  All Imperial Specifications are approximate conversions.

ELECTRICAL EQUIPMENT AND CONTROLS:
575/3/60, 1hp
Weight 485 lbs
Dimensions (l/w/h) 32” x 24” x 58”

OPTIONS:
Tube bending rolls
Profile bending rolls
Digital Display
Guide Rolls
Scroll Bending Attachment.(+SAPK30SC)
Rod Twisting Attachment   (+SAPK30RT)
