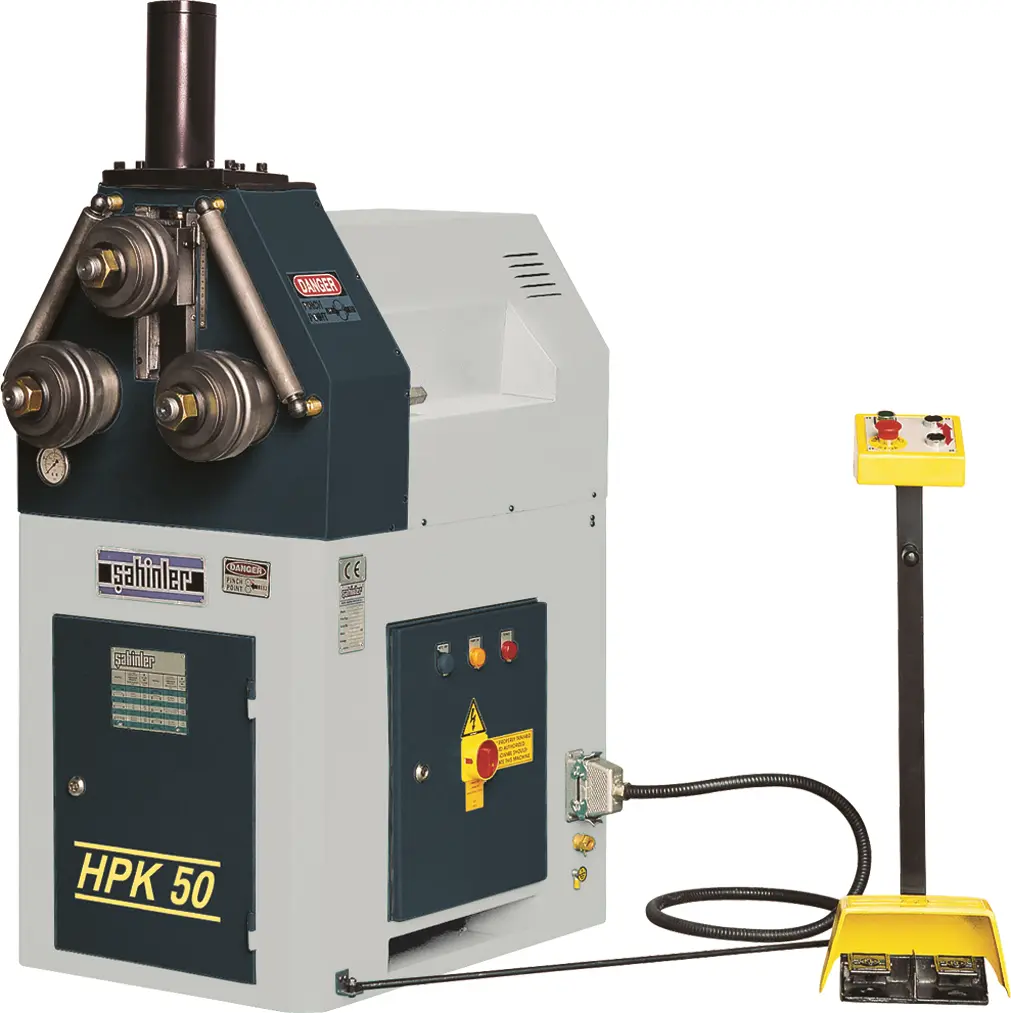

SAHINLER ANGLE BENDING ROLL MODEL HPK-50

This is a fabricated steel machine with hardened and ground rolls. The top roll can be adjusted up and down through hydraulics and can be ordered with an optional digital display. All three rolls are driven and incorporate a brake motor.  The control console is well laid and easily moved around on its casters. The lateral guide rolls are manually adjustable. The machine can be operated horizontally as well as vertically. The hydraulic valves are made by Bosch and the electrical are Siemens and Telemechanique.
CAPACITIES:
Hardened Rolls for standard profiles included with machine
Hydraulic adjustment of top roll position

CAPACITY CHART: metric
All Bending capacities are calculated based on 24 kg/mm2 Yield Point Material (34,000 PSI Yield)  All Imperial Specifications are approximate conversions.
ELECTRICAL EQUIPMENT AND CONTROLS:

575volt / 3ph. /60cy., 1-1/2 HP
Weight: 1,250 lbs
Dimensions (l/w/h): 34”x38”x60”
OPTIONS:
Digital Display
Guide Rolls
Infinitely Variable Speed on Controls
NC Control- Easy View with manual, automatic, semi-automatic and teachable working modes, 48 steps with 1000 programs memory, 7.7” screen, Siemens PLC
NC control…same as above with 10”screen
Extra axis for NC control
Hand Rail Bending Device
Tube/Pipe Rolls
Profile Rolls, Angle

Capacity: 2” x 2” x 1/4”

Shaft Diameter: 2.00” / 50mm

Upper Roll Diameter: 6.00” / 152mm

Lower Roll Diameters: 6.37” / 162mm

Shaft speed: 14 fpm
