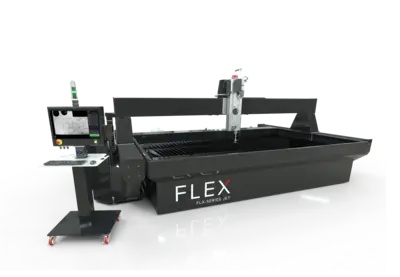

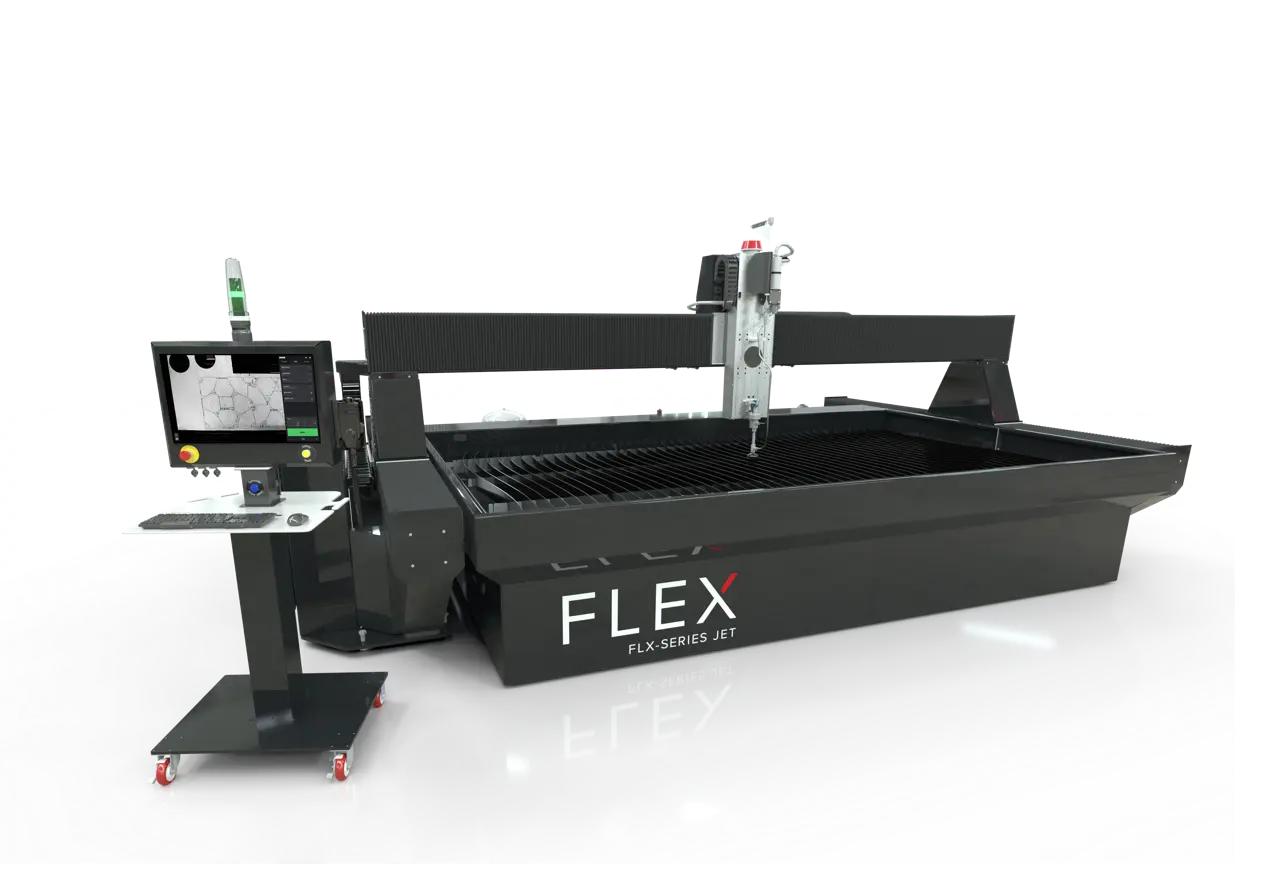

FLEX FLX-SERIES WATERJET

FLX-1365
XYZ: 156″/ 78″ / 12″

Abrasive Cutting system

Install, Training, 1 Year Warranty
Speed / Accuracy

Repeatability ………………………… 0.001 in.

Acceleration ………………………………..0.3G

Ballbar Circularity……………………. <0.003

Maximum Traverse Speed …….. 1,800 in/min
Standard Specifications

Abrasive Cutting System

Hand Pendant

22″ Multi-touch Screen & Roll Around Control

Water Level Control: 4″ rise

Abrasive Hopper: 500 lb continuous fill

Material Support Slats: Galvanized Steel

Electrical Requirements: 3 Phase, 480V

User-Friendly Software

50 HP 60,000 PSI Pump

Multiple Cutting Heads

5 Axis Head
