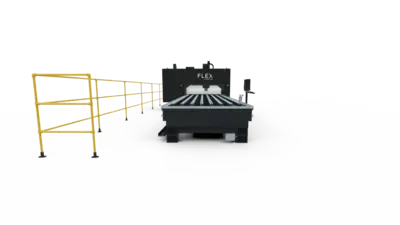

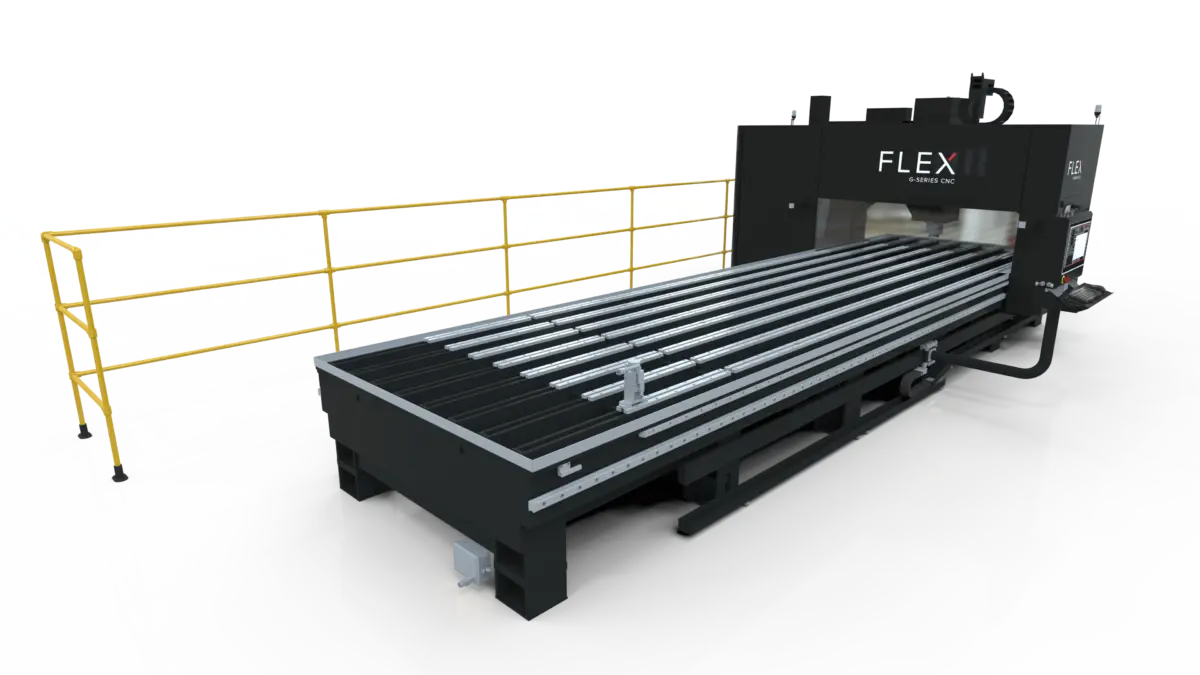

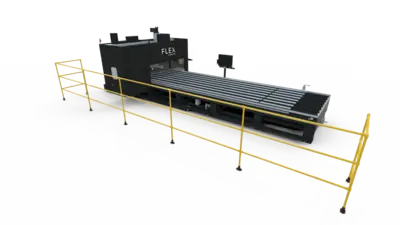

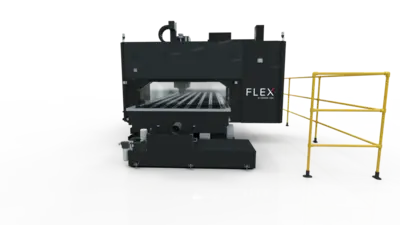

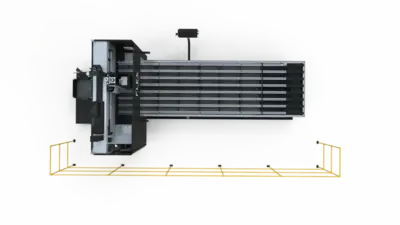

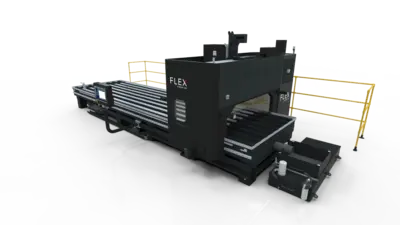

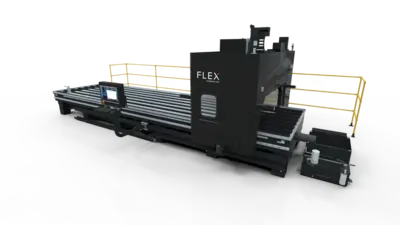

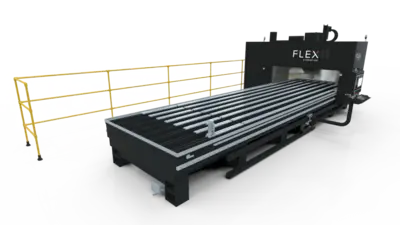

FLEX VERTICAL MACHINING CENTER
The FlexCNC is the best-priced and most flexible vertical machining center in the world. The FlexCNC G-Series is a gantry-style vertical machining center that ranges in size from 10’ to 80’ long. In addition to our standard sizes, we design and build custom machines to suit your needs.
Capable of high-speed drilling and milling of your large parts in one setup with less repositioning. It is available in four different spindle tapers; CT/BT40, CT/BT50, with a maximum peak torque capability of 220 ft/lbs. The G-Series features a monobloc, welded steel frame with high rigidity, a T-slot machine bed for easy fixturing, and a maximum torque of 230 ft/lbs. The machine is moved along two oversized precision linear guideways on each axis, and it includes a dual drive on the X-axis with a high precision helical rack and an oversized ball screw on the Y & Z-axis. Our motion control system is the most state-of-the-art CNC controller available, giving you the capability and Flexibility for your machining applications, large and small.
Hand Pendant
22″ Touch Screen Monitor
Omron FlexCNC Controller
Mobile Control Panel
Through Spindle Coolant
Auto Tool Changer
Flood Coolant
Tool Calibrator
LED Machine Light
Ethernet Connection
Safety Laser Scanner on Front of Machine
Fence on the Rear of Machine
90 Gallon Coolant Tank
Chip Auger & T-Slot Rails
