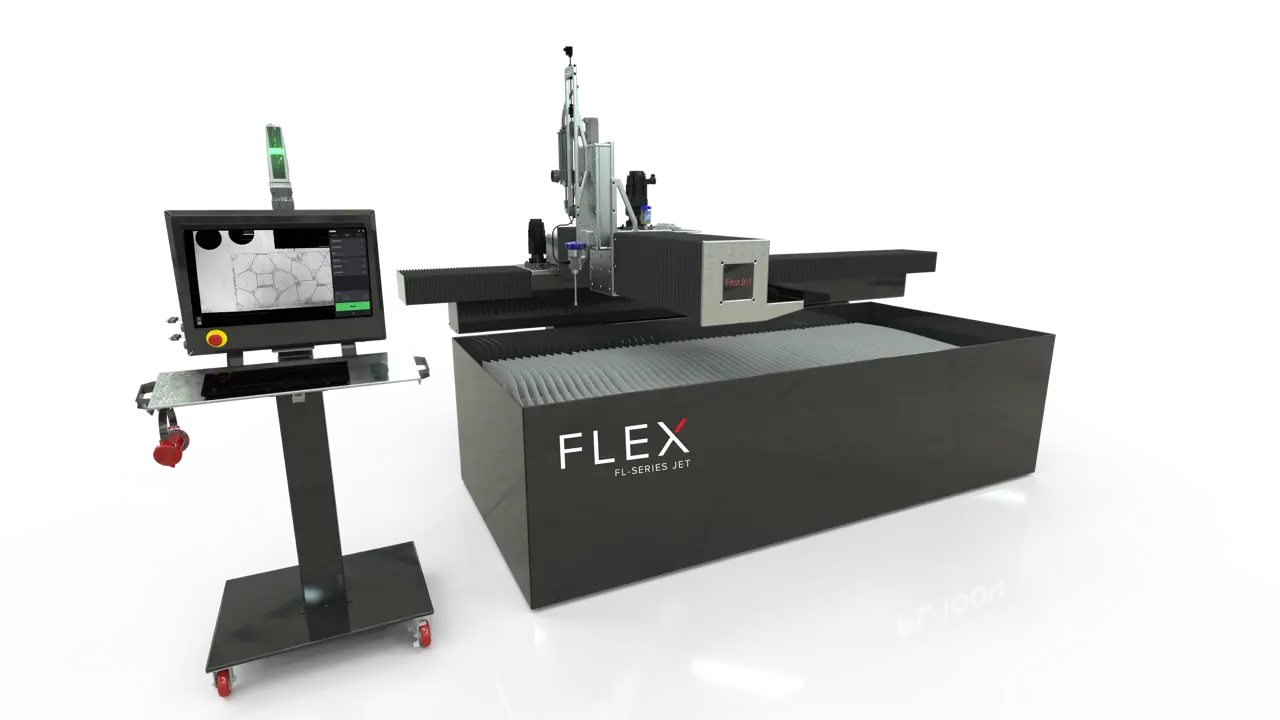

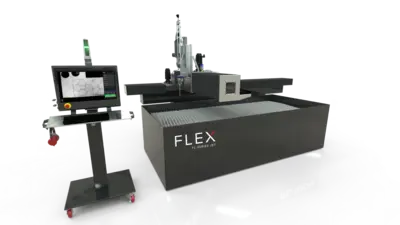

FLEX FL-Series Waterjet

FL-0404 | FL-1004
XYZ: 48″ / 48″ / 10″ | 120″ / 48″ / 10″

Abrasive Cutting system

Install, Training, 1 Year Warranty

Speed / Accuracy

Repeatability ………………………… 0.001 in.

Acceleration ………………………………..0.3G

Ballbar Circularity……………………. <0.003

Maximum Traverse Speed …….. 1,400 in/min

Standard Specifications

Abrasive Cutting System

Hand Pendant

22″ Multi-touch Screen & Roll Around Control

Abrasive Hopper: 500 lb continuous fill

Material Support Slats: Galvanized Steel

Electrical Requirements: 3 Phase, 480V

User-Friendly Software

30 HP 60,000 PSI Pump

Multiple Cutting Heads
