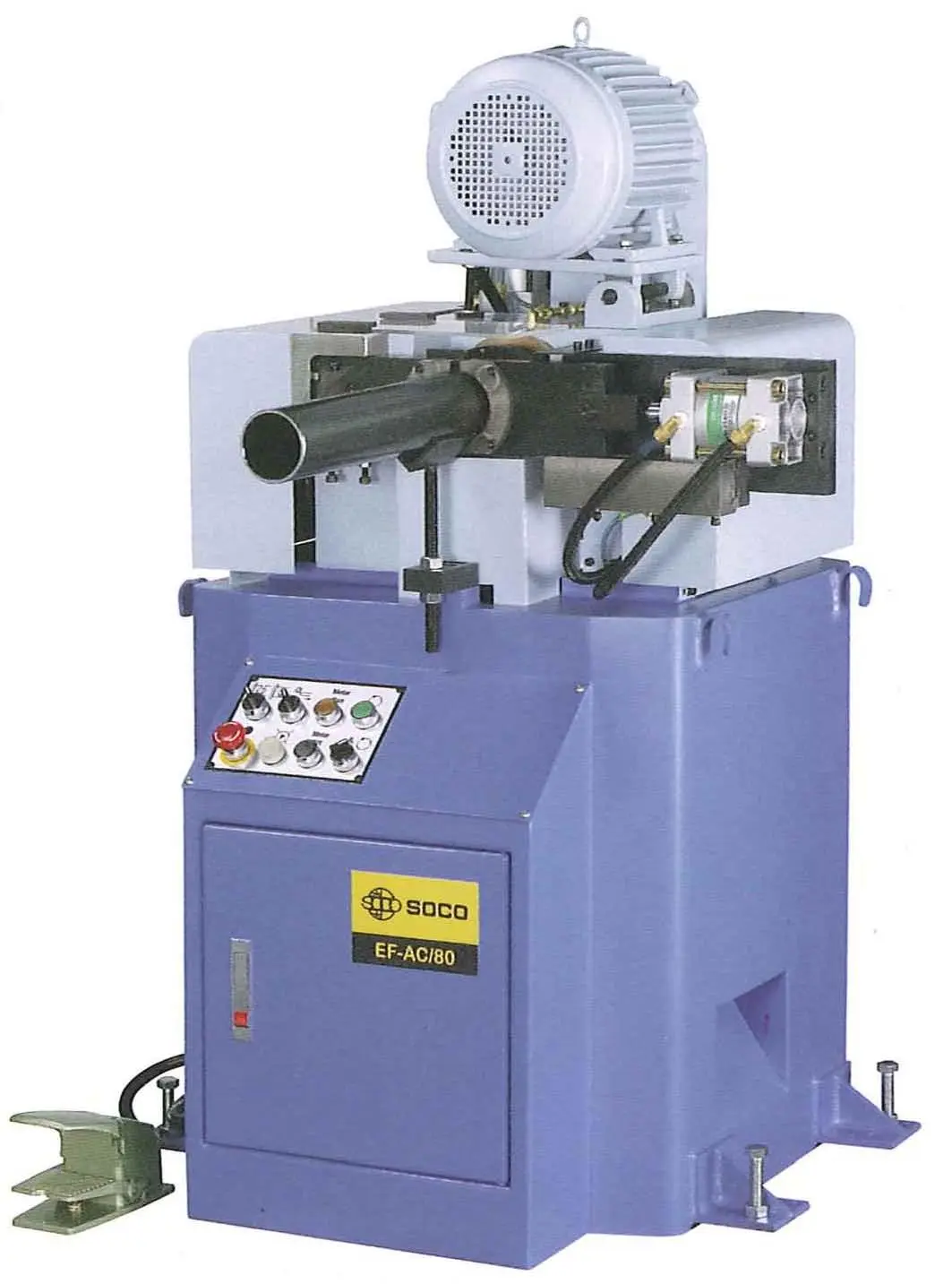

SOCO END FINISHING MACHINE Single End, Semi-Automatic

Models
OPTIONS:
Tool Head (Less holders and inserts)
Tool Holders Each
Carbide Inserts Each
Tool Head Assembly C/W Holders and Insert
Clamping Jaws, per set
Speed Invertor

Air Operated

Capacity – Round Tube: 3/8” to 3 ¼” (20mm-80mm)

Capacity – Solid Bar: 3/8” to 2” (9mm-50mm)

Three (3) Cutting Tool Speed: 907 RPM, 1367 RPM, 1687 RPM

Width of Clamping Jaws: 1 – 3/8”

Stroke of Cutting Tool: 1” max

Pressure Air: 6-9 kgg/cm2, 120 ml/min

Spindle Motor: 3 HP

Electrics: 3 HP, 575/3/60

Weight: 660 lbs

Dimensions (LxWxH): 63” x 43” x 67”
