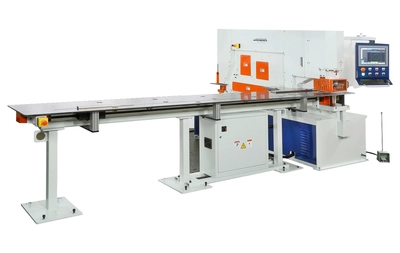

The semi-automatic CNC positioning tables from SUNRISE are plate, angle and channel positioning systems with simple user-friendly interfaces.
CNC Automation

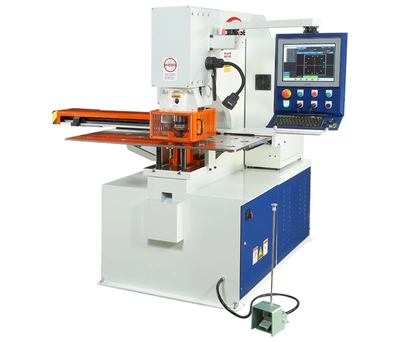

The CNC positioning table is available as a factory-installed option on any Dual-Cylinder Ironworker or Punching Machine with a 510mm or larger throat depth. The operation is CNC controlled using a pendant mounted controller featuring easy programming and a virtually indestructible design. The operator simply positions the plate against the CNC-controlled X and Y stops and initiates the punch sequence. Ideal for base plates, connection plates, angles, channels and more.
Preview function before executing program
Four pre-programmed patterns: Line, Array, Arc, and Custom
Spotting function using low pressure mode
Maximum table travel speed: 10m/min
Table accuracy without load ± 0.05mm
