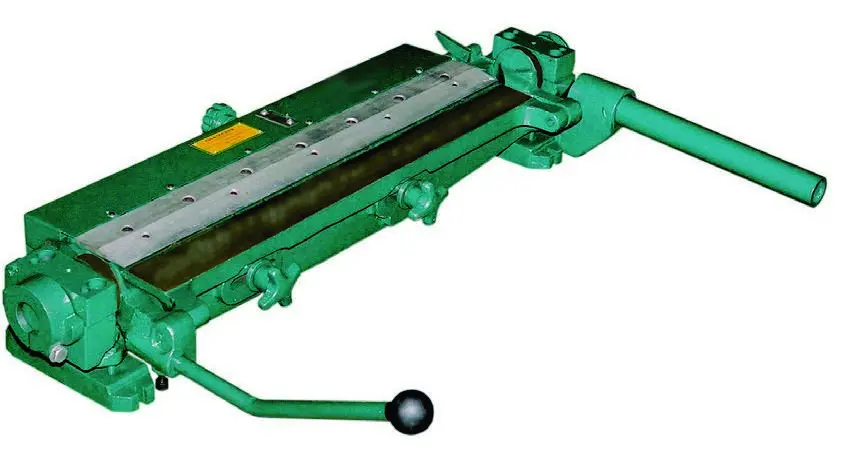

The TK-30 Barfolder is the ideal machine for the manual bending of S Clips and Drive Cleats. It can form sharp locks on edge of sheet metal for double seam, open locks for wired edges, flanges of various degrees and single or double hems.It can be used for radius bends, short run production with quick set gauging.
Max. folding length (in.): 30
Capacity, mild steel (ga.): 22
Gauging range (in.): 1/8” – 1”
Max. round folding dia. (for wire): ¼”
Weight Bar Folder: 334 lbs.
Weight floor mounted stand: 100 lbs.
