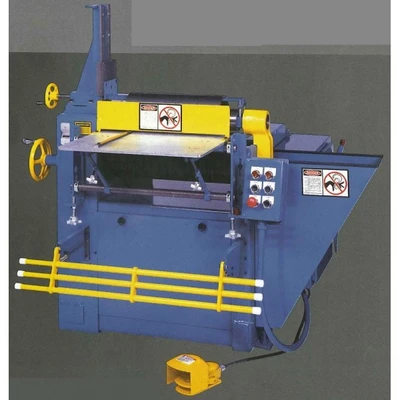

ACROTECH 2-ROLL BENDING MACHINE, 10 ga.

The HD Series is designed for the production of larger, heavier gauge parts.
The drop arm and the lower roll are positioned hydraulically on all HD machines.
Standard features adding to the productivity and safety of these machines include:
A digital readout that indicates roll position and allows for quick repeat set up
A safety knee bar which can be easily activated to quickly shut down all mechanical operations

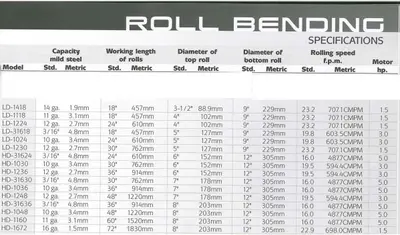

MODEL: HD-1030

CAPACITY - Mild Steel: 10 ga.

WORKING LENGTH OF ROLLS: 30"

DIAMETER OF TOP ROLL: 6"

DIAMETER OF BOTTOM ROLL: 12"

ROLLING SPEED:19 1/2"  f.p.m

MOTOR: 3 HP
