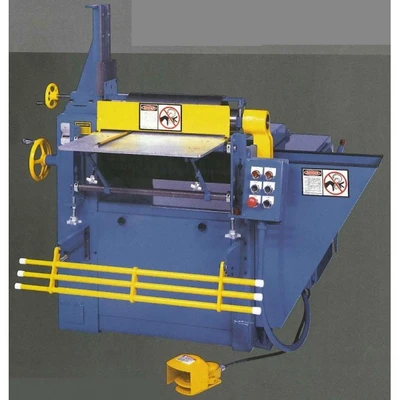

ACROTECH 2-ROLL BENDING MACHINE, 14 ga.

The LD Series is designed for the production of larger, heavier gauge parts.
The drop arm and the lower roll are positioned pneumatically on all LD machines.
Standard features adding to the productivity and safety of these machines include:
A digital readout that indicates roll position and allows for quick reapeat set up
A safety kneebar which can be easily activated to quickly shut down all mechanical operations

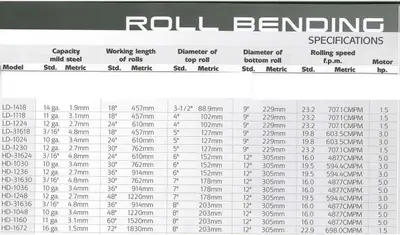

MODEL: LD-1418

CAPACITY - Mild Steel: 14 ga.

WORKING LENGTH OF ROLLS: 18"

DIAMETER OF TOP ROLL: 3 1/2"

DIAMETER OF BOTTOM ROLL: 9"

ROLLING SPEED: 23.2  f.p.m

MOTOR: 1.5 HP
