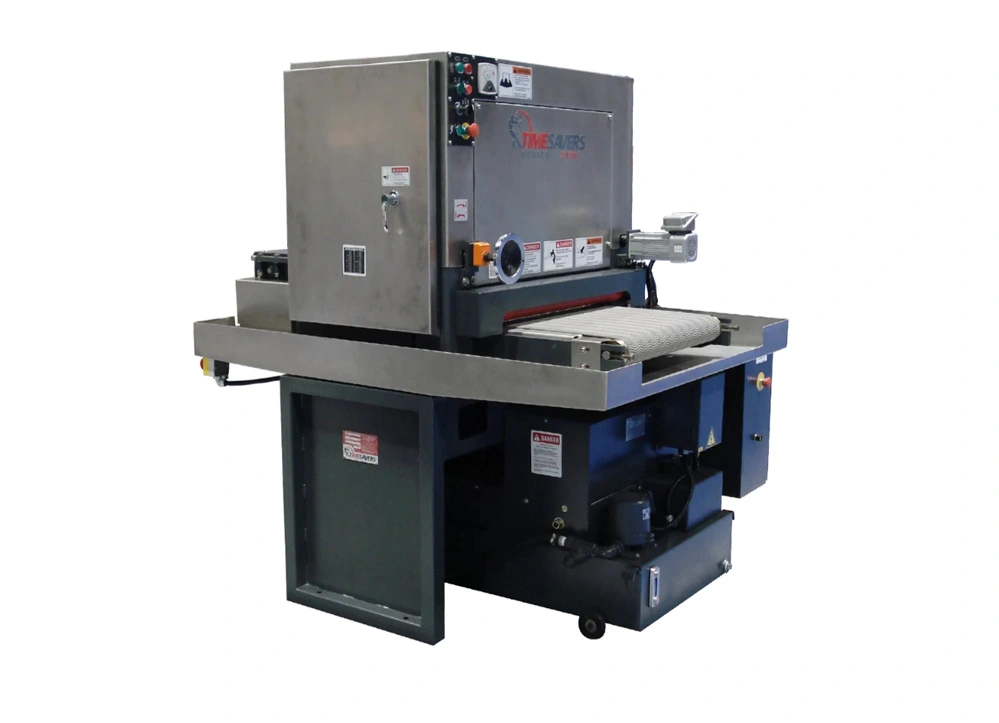

The 21 Series wet processing machine offers many features of larger single-head wet machines, but with reduced horsepower and compact design for an economical price for lower production requirements.
Specifications
Available configurations: Drum only
Air knife dryer
Widths of 25”, and 37”
60” abrasive belt length
0-5” table opening
15-30 fpm throughput
Minimum part length 8″
38″ constant passline
Integrated paper bed filtration system
Centralized control panel
Handwheel adjustment
Applications:
The 21 Series can be configured for metal finishing or deburring at an affordable price, with the ability to mix metals.
Removal of vertical burrs from stamped, punched, laser, and water jet cut parts
Very low operating cost and a high production capacity
Mixing of metals, including titanium, aluminum, carbon & stainless steel, copper, etc.
Deburring and surface finishing in one pass
1 shift, 6-8 hour duty cycle
