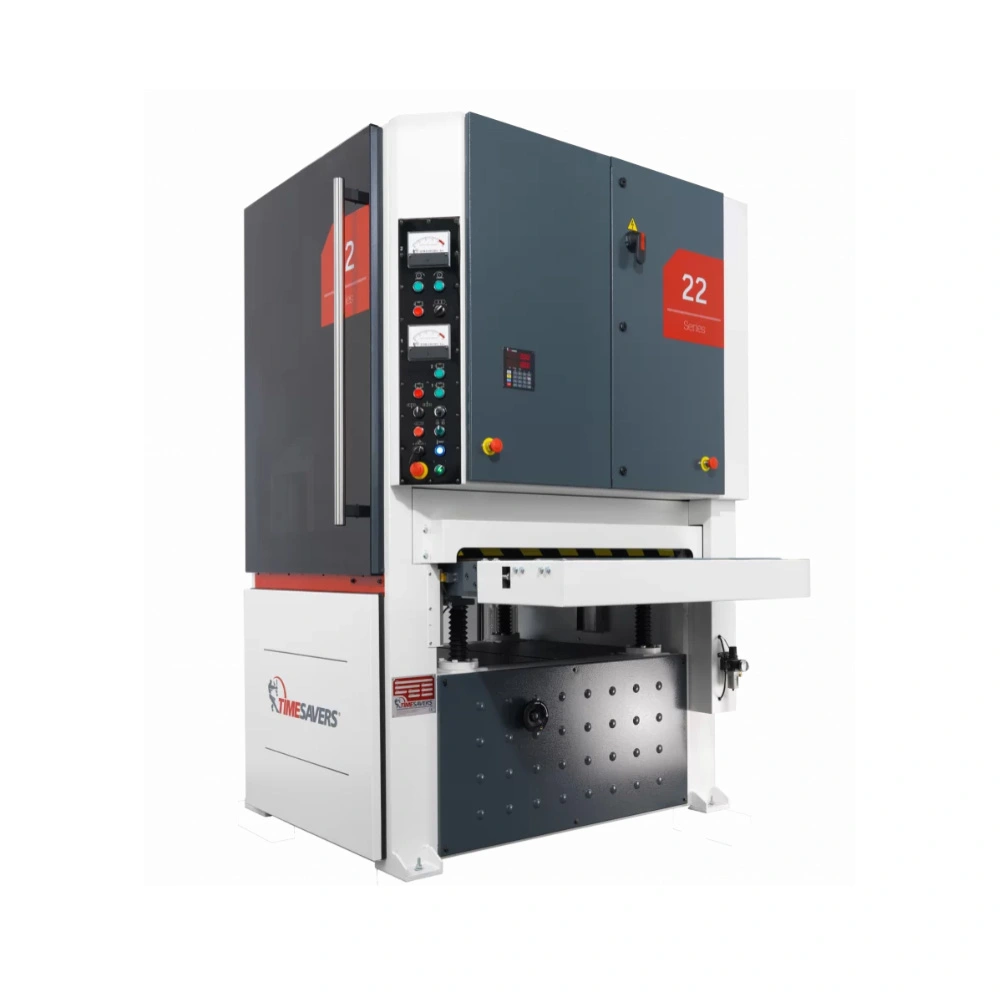

TIMESAVERS 22 SERIES

The 22 Series can be configured for metal finishing or deburring at a competitive price. This versatile group of machines is available in 2 widths with configurations of 1-3 heads. By combining an abrasive belt and a brush, products can be deburred and rounded in one pass. The machine is produced for deburring laser cut metal and edge rounding of sides, with low user costs.
Specifications
Number of heads 1-3
Available in multiple configurations depending on customer application
Machine widths of 37″, and 52″
Electronic photo-eye abrasive belt tracking
Dust extraction available
Minikol Go-To bed position device
15-45 fpm feed speed
Up to 40 HP main motors
0-6″ machine opening
8″ minimum part length
6-10″ contact drums
8″ brush head diameter
Oscillating brush heads

Applications:

High production capacity with increased ROI and reduced operating costs
Increased throughput with the ability to run up to 2 shifts
Deburring, edge breaking, edge radiussing, and surface finishing in one pass using multiple heads
Electronic photo tracking eyes for accurate abrasive belt tracking
Ability to customize configurations based on customer applications
Removal of vertical burrs from stamped, punched, laser, plasma, and water-jet cut parts
Dry operation
Small footprint
