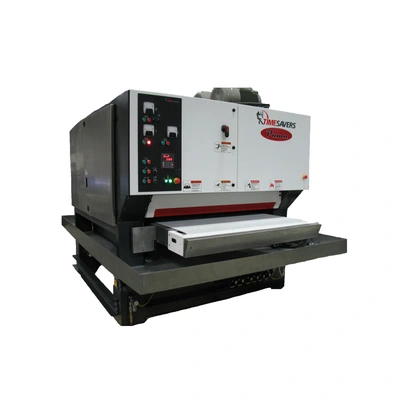

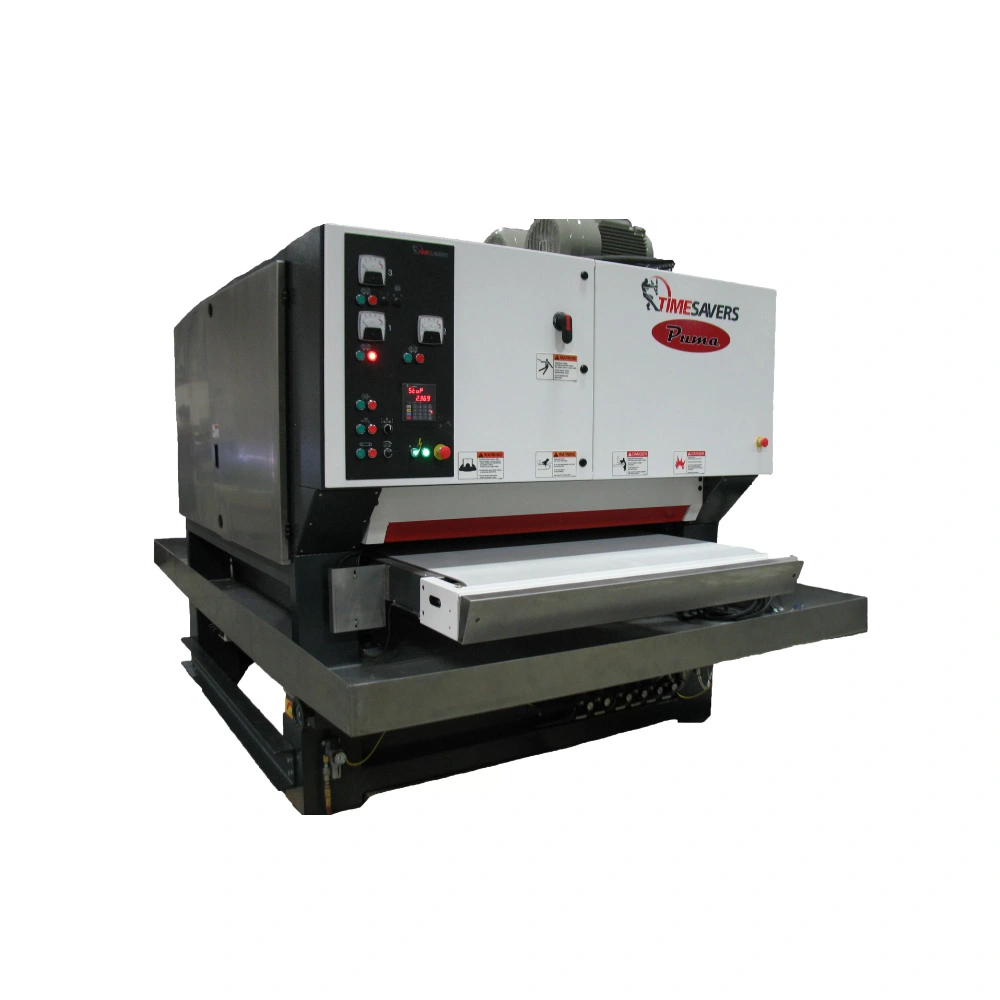

TIMESAVERS 41 SERIES (PUMA)

The 41 Series (PUMA) is engineered, designed, and built for 3 shifts, and 24/7 operations. This high-quality grinder is available with up to 4 heads with multiple head types. This makes the machine extremely suitable for machining thin, oiled, greasy, and/or highly flammable metal parts and materials.
Specifications
Number of heads: 1-4
Head types: Drum, Brush
Multiple configurations available based on customer applications
75″ sanding belt length
10″ minimum part length
Up to 30 HP main motors
8″ diameter barrel brush
0-6″ opening
Machine widths of 37″ & 52″
15-45 fpm throughput
Electronic photo tracking eyes for accurate abrasive belt tracking

Applications:

The 41 Series (PUMA) is a complete machine with an integrated filtration system to keep metal parts cool during machining, and adding lubricity ensuring the abrasive belt’s service life is extended. A high-pressure air system dries the metal parts as they are exiting the machine.

Removal of burrs on laser, water-jet, punched, and cut metal parts.
Provide the finest finish in the industry
Deburr, edge break, & finishing of metal in one pass
Mixing of metals, including titanium, aluminum, carbon & stainless steel, copper, etc.
