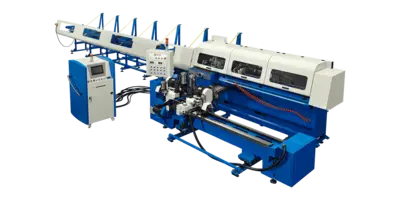

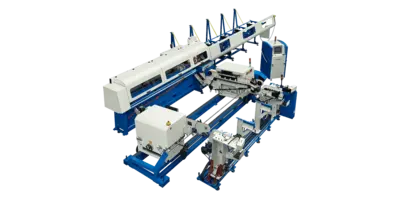

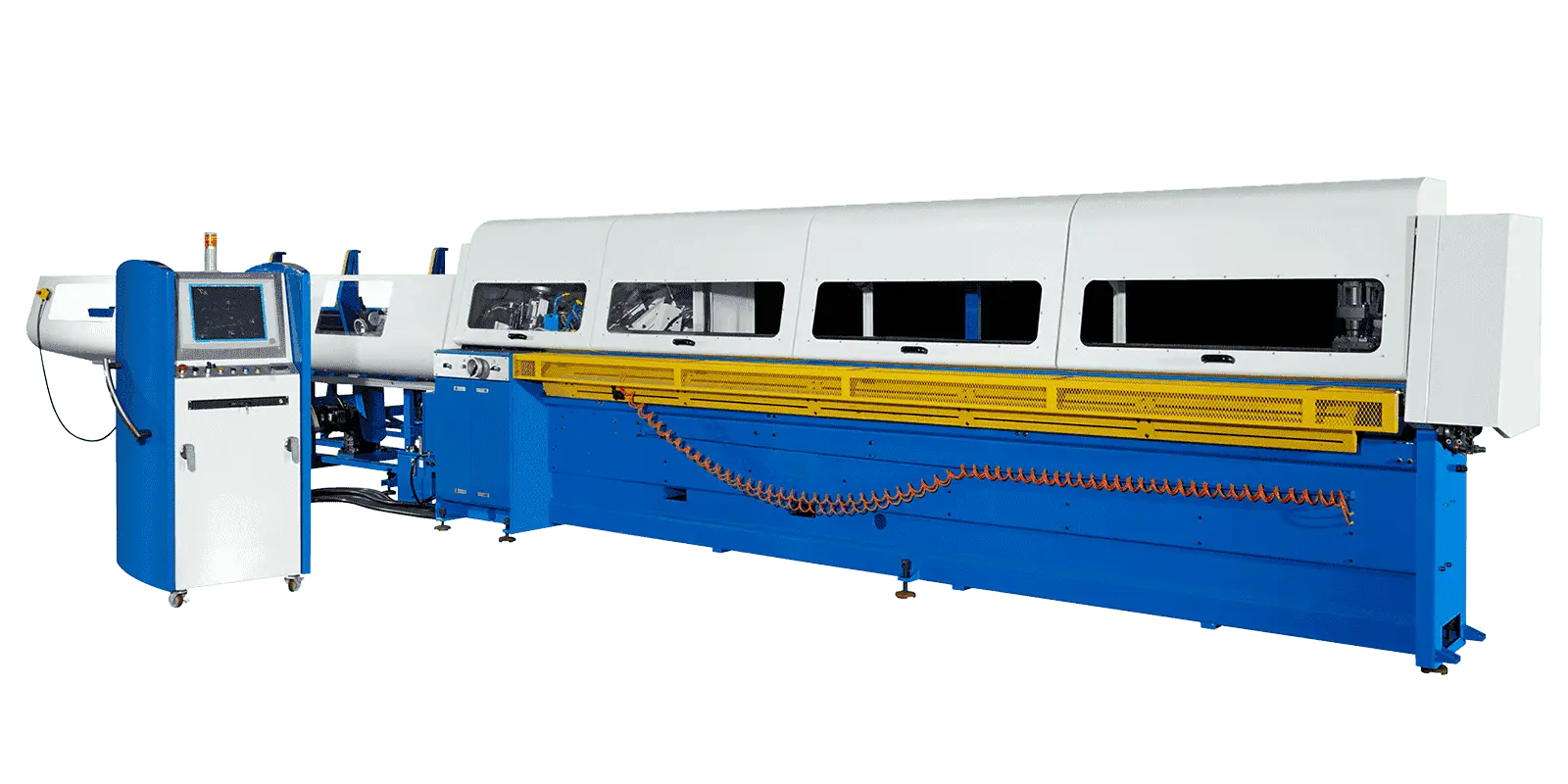

The SOCO SA-78NCE Tube Cutting line brings you the latest technology in High Tensile Steel Tube Sawing. Its unique design and cutting system bring the highest saw blade life in such applications, as well as unparalleled performance and speed.
Machine Features
Suitable for Cutting Automotive parts such as Impact Beams, Chassis, and Cross Bar tubing
High Tensile Tube Cutting Technology (up to 120 kg/mm²)
Recommended to be used with TCT Saw Blades
Capacity up to OD 78 mm tubing. Sawing Lengths up to 2 M / 3 M / 4.5 M
2 Axis: Electric Servo Controlled Feeding and Cutting
High-Speed Sawing: the average sawing cycle time can be up to 4.5 seconds for most sizes.
Standard with 6.5 meters Bundle Loading Magazine (MB6), optional 8.5 meters /12.5 meters
Automatic separation of first and last cut vs. workpieces
Remnant Crop cuts down to 30 mm
Quick Saw Blade Change system
Safety covers for operational safety and minimized noise
1 or 2 optional length stoppers with Digital Length Readout
Automatic NC Servo Controlled Length Stopper (Optional)
2 Loading Positions available: Left Side and Right Side Loading Magazines
i2® Touch Screen Graphical Controls with Automatic Recommendation of Cutting Parameters. 3 to 5 minutes of setup time between most tube sizes
Unique Blade Holders and Gearbox Brake System for complete backlash elimination
The system can be connected to SOCO’s Tube Deburring Machine (BDB-70) or Tube Chamfering Machine (FM-76V), Length Measuring (LM-3000), and Stacking (STK-3000)
