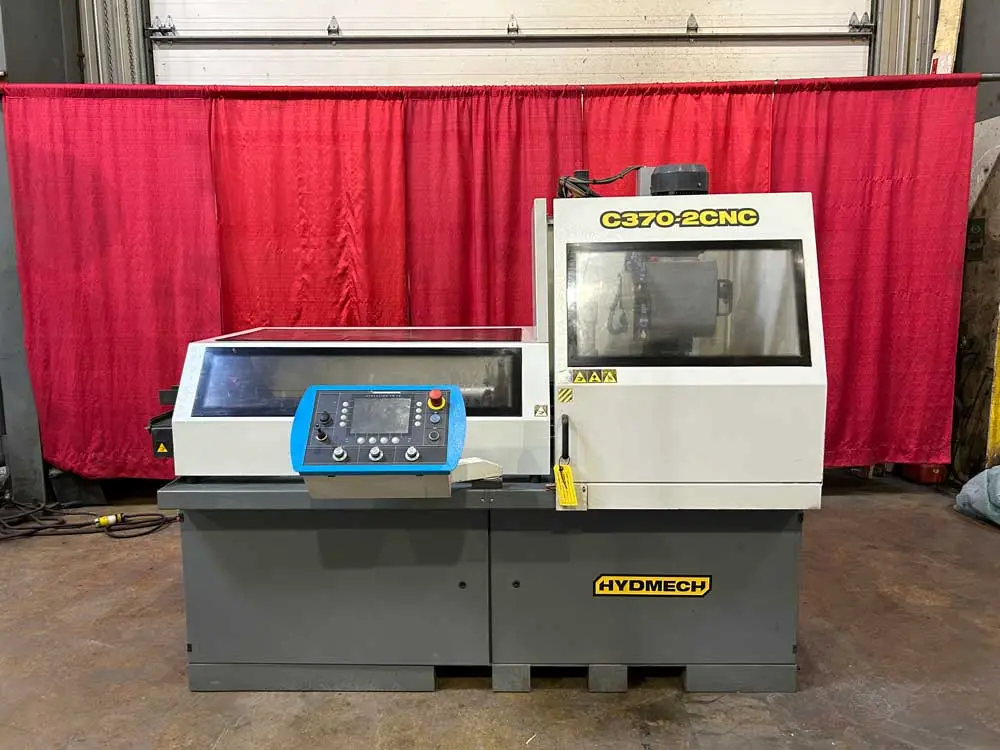

MODEL C370-2CNC
EQUIPPED WITH:
MODEL: C370-2CNC
SERIAL#: H-04-17-0169
YEAR OF MANUFACTURE: 2017
BLADE SIZE: 14.5” (max.)
CAPACITY @ 90º ROUND, Hollow: 4 ¾”
CAPACITY @ 90º SQUARE, Hollow: 4 ¼”
CAPACITY @ 45º ROUND, Hollow: 4 ½”
CAPACITY @ 45º SQUARE, Hollow: 4”
SPEED: 15-150 RPM (variable)
MOTOR: 8/12 Hp.
WEIGHT: 2,400 LBS. APPROX.
DIMENSIONS (LxWxH): 97” x 69” x 75”
FOB POINT: MISSISSAUGA, ON
Heavy duty sawing head, electro mechanic cylinder on dual precision linear rails
Programmable 40” stroke length, ball screw, with automatic kerf compensation
Pneumatic clamping (2 vises)
Programmable MEP 40 control, with digital display for machine diagnostics, cutting parameters (blade speed, cut time and quantity) stores up to 32 jobs.
Mist lubrication system
Miter head, 45 degree left + right, up to 60° left only
